Availability: | |
---|---|
Quantity: | |
ZAS-650A3-XZMS648
OEM Customer brand
Supply Ability:
1000 Piece/Pieces per Month
Packaging Details
All-in-one carton box
Port
Shenzhen Yantian
Lead Time :
Quantity(Pieces) | 1 - 500 | >500 |
Est. Time(days) | 35 | To be negotiated |
1. Infrared Touch Set Product Specification
MODEL: | ZAS-650A3-XZMS648 | DESCRIPTION: 65 inch 4K UHD Infrared Touch Screen TV | |
PANEL SPECIFICATION | |||
Panel Brand | LG (Option) | ||
Panel Model | LC650EGY (Option) | ||
Diagonal Size | 65" | ||
Resolution | 3840×2160 | ||
Contrast Ratio | 1200:1 | ||
Viewing Angle (H/V) | 178°(H)×178°(V) | ||
Response Time | 6ms | ||
Transmittance | 5.38% | ||
Frame Rate | 60Hz | ||
Brightness (LED) | ≥320cd/m2 | ||
MOTHERBOARD ELECTRONIC SOLUTION | |||
Motherboard Model | DZ-B-85P-VB-V1.1 | ||
Processor | Quad-core Cortex-A53 | ||
Main Chipset | MSD6A648WY-8 | ||
CPU Frequency | 1.5GHz | ||
DDR Size | 1.5GB Standard, 2GB (Option) | ||
eMMC Flash | 8GB Standard, 16GB/32GB (Option) | ||
Operating System | Android 6.0 | ||
Touch Point | Simutaneous 10 points of infrared touch | ||
TV RECEIVING SYSTEM | |||
ATV | Reception Range | 48.25MHz~863.25MHz | |
Colour System | NTSC,PAL,SECAM | ||
Sound System | BG,DK,I | ||
DTV (DTMB) | Reception Range | VHF(52.5MHz~219MHz)/UHF(474MHz~866MHz) | |
Modulation | TDS*OFDM | ||
Video System | MPEG-2,MPEG-4,H.264 | ||
Sound System | MPEG-layer 1/2,MPEG-2 layer 2 | ||
TERMINAL CONFIGURATION | |||
TERMINAL | Qty | FEATURES | |
Touch input/output | 1 | USB2.0 B type | |
HDMI input | 2 | 480i/480p/576i/576p/720p/1080i/1080p/2160p | |
RJ45 network input | 1 | 10/100M auto-identification and DHCP | |
PC Audio input | 1 | Earphone Input | |
VGA input(15pin) | 1 | Up to 1920×1080 @60HZ | |
YPbPr input | 1 | Mini earphone jack | |
AV input | 1 | PAL,NTSC (Mini earphone jack) | |
AV output | 1 | Mini earphone jack | |
Earphone output | 1 | Earphone jack | |
Cable/antenna input | 1 | 75Ω IEC type | |
Coaxial out | 1 | PCM/RAW | |
TF Card input/output | 1 | Support MAX 128GB SD card | |
RS232 UART input/output | 1 | DB9 type | |
USB2.0 input/output | 2 | Software upgrade, multimedia play 4K@60Hz | |
Built-in WIFI module | 1 | 2.4G single frequency single antenna | |
Pluggable OPS PC | 1 | Size 196mm(L)*180mm(W)*33mm(H) | |
POWER PARAMETERS | |||
Power Source | 100-240VAC 50/60HZ | ||
Power ON consumption | <230W | ||
Standby consumption | <0.5W | ||
Maximum audio output power | 2×10W | ||
OPS SYSTEM CONFIGURATION (Option) | |||
Processor | Intel® Core™ i3-4160 | ||
Chipset | Intel® H81 | ||
DDR Size | 4GB (Option) | ||
Storage | HDD 500GB (Option) | ||
Operatng System | Windows (7/10/…) | ||
OPS TERMINAL (Option) | |||
TERMINAL | Qty | FEATURES | |
RJ45 network input | 1 | 10/100M auto-identification and DHCP | |
WIFI module | 1 | 2.4G single frequency dual antenna | |
VGA output(15pin) | 1 | Up to 1920×1080 @60HZ | |
HDMI output | 1 | Up to 3840×2160 @60HZ (4K UHD) | |
USB2.0 input/output | 4 | Read and write data | |
USB3.0 input/output | 2 | Read and write data | |
LINE output | 1 | Φ3.5mm jack | |
MIC input | 1 | Φ3.5mm jack | |
ACCESSORIES IN THE BOX | |||
Remote control | 1 pcs | ||
Wall bracket | 1 pcs | ||
AC power cord | 1 pcs | ||
Touch pen | 1 pcs | ||
PACKING & CONTAINER LOAD | |||
Carton box size | 1640(L)×215(W)×1055(H)mm | ||
40"HQ | 172 pcs |
2. Application Scenarios
Use for meetings, classrooms, training, etc.
3. Reference pictures

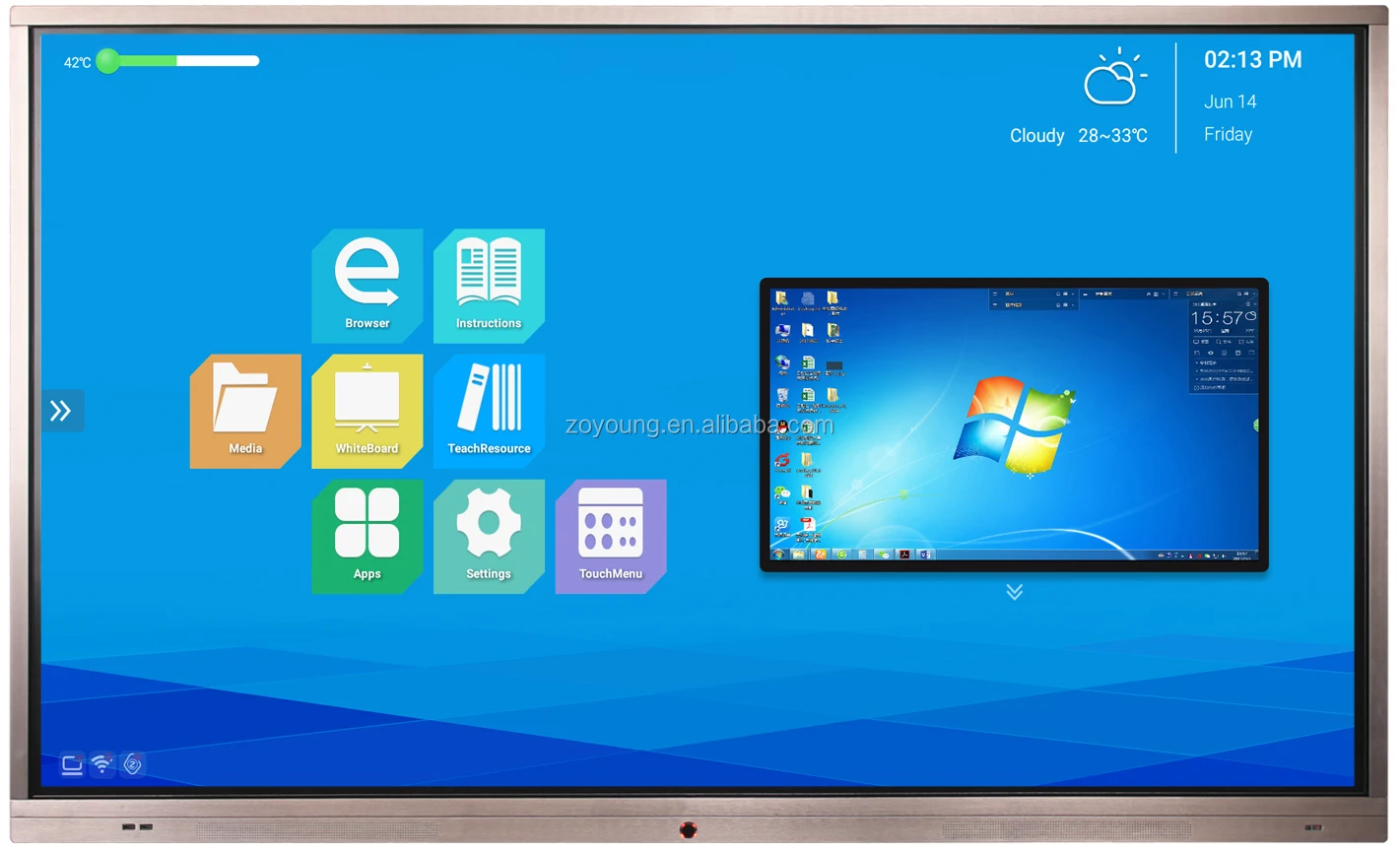

∗ FRONT VIEW PICTURE

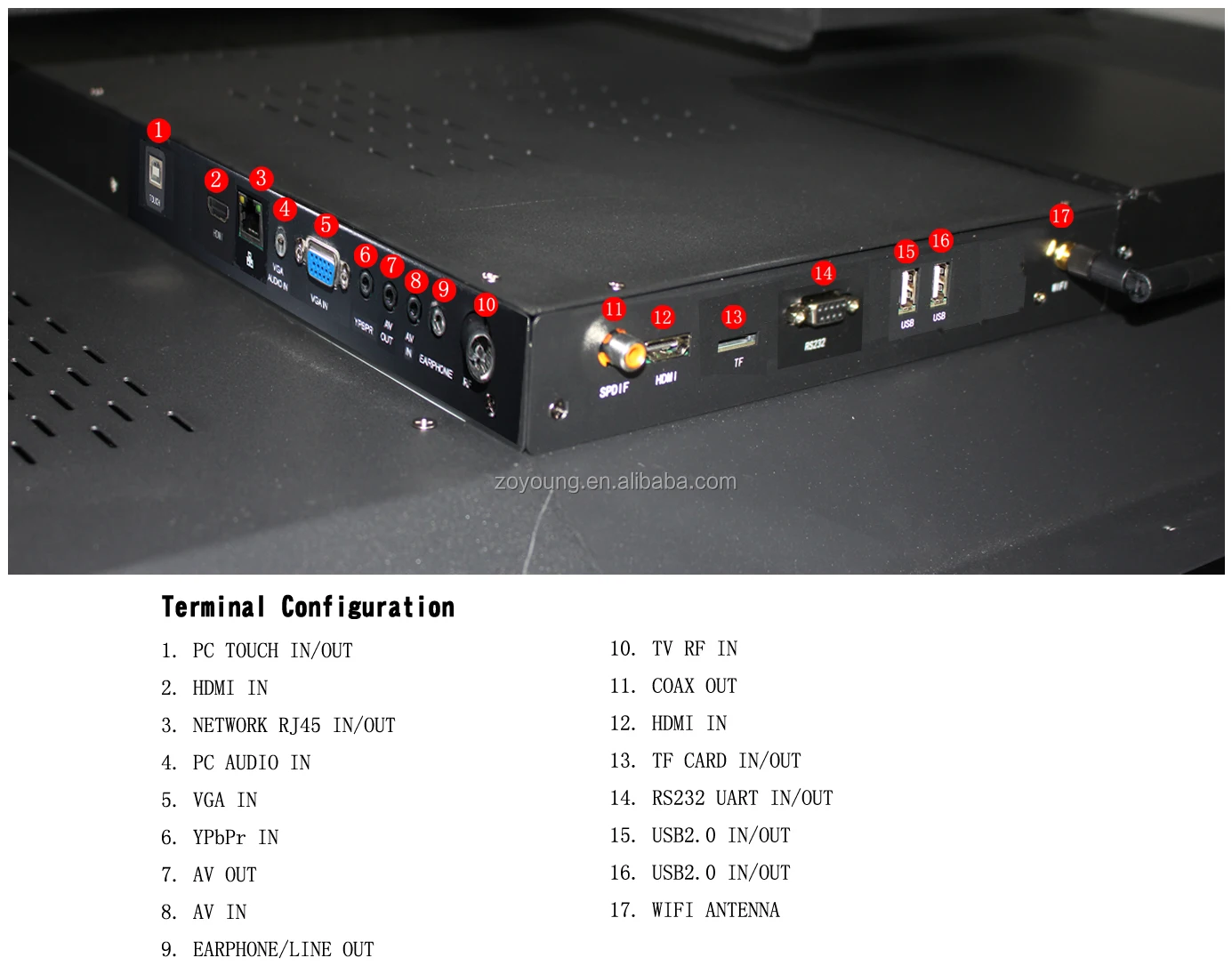

∗ TERMINAL INTERFACE PICTURE

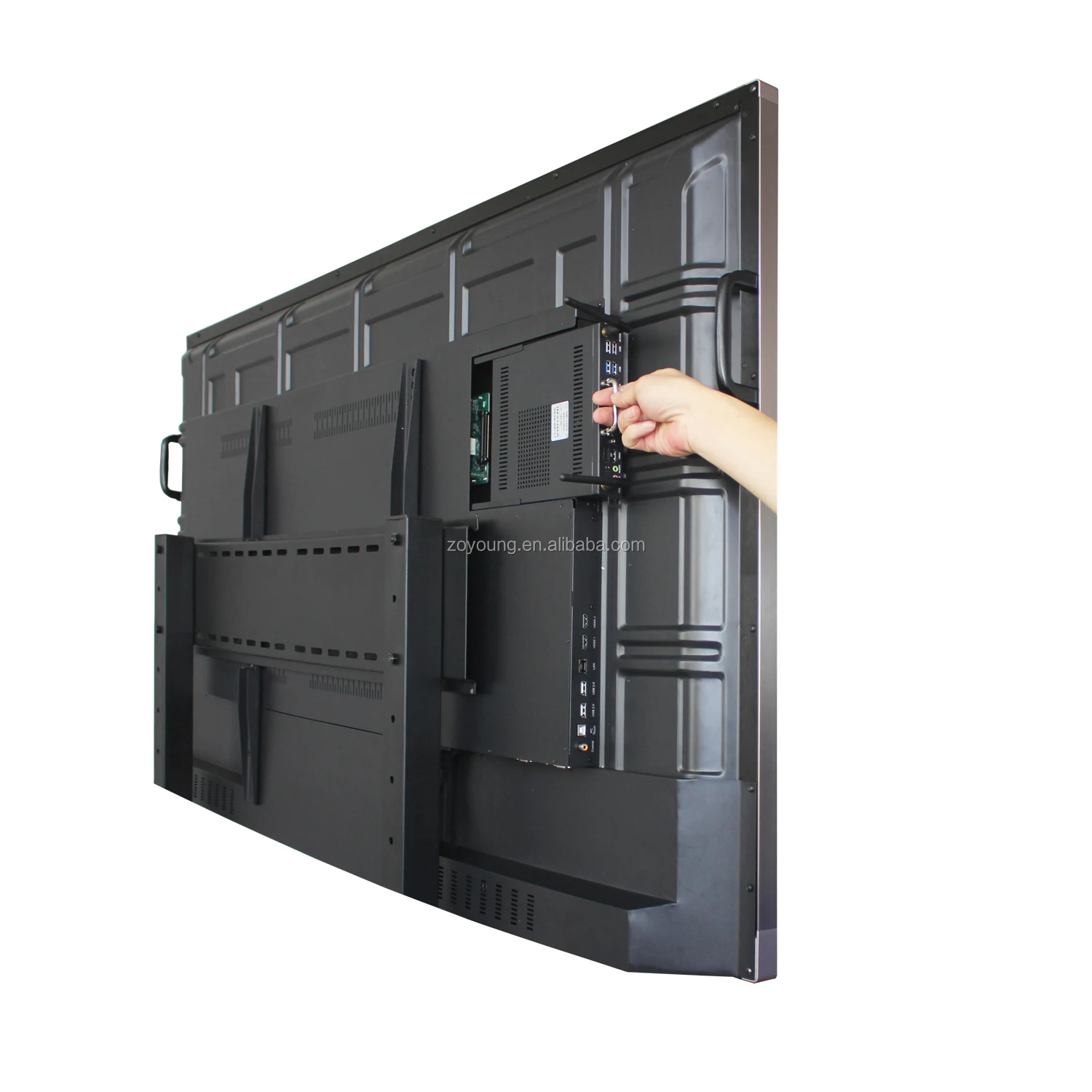

∗ BACK VIEW PICTURE
∗ REMOTE PICTURE
