| Quantity: | |
|---|---|
ZY-P1
OEM Customer brand
8525801390
| Camera Parameter | Model | ZY-P1 | |
| Processor | GK7205V200 | ||
| Camera Pixel | 5MP | ||
| Sensor | 5 million 1/2.8" SC4239H CMOS sensor, color 0.1Lux@F1.2, black and white 0.01Lux@F1.2 | ||
| Shutter | 1/50 (1/60) seconds to 1/10000 seconds | ||
| Lens | 3.6mm-F1.4, horizontal vision 87°, diagonal 104° | ||
| Lens Interface | M12 | ||
| Night Light Pattern | Concentrating dual light 10 lights night vision full color [automatic switching] | ||
| Infrared Illumination Distance | Within 30 meters | ||
| Compression Format | Video Compression Format | H.265+ | |
| Video Compression Code Rate | Super HD, label second gear, rate adaptive | ||
| Image | Maximum Image Size | Main stream: 2304*1296; sub-stream: 704*576 | |
| Frame Rate | Maximum frame rate: 50Hz: 1-25fps network frame rate adaptation | ||
| Features | Alert Function | Intelligent dual lights human recognition alarm/cross-line, area, bidirectional flow detection | |
| Alarm Mode | Siren warning, push alarm via mobile APP , custom alarm voice, cross-line/area alarm setting | ||
| Two-way Voice | stand by | ||
| Cloud Storage | Support (free experience for 30 days) at home and abroad | ||

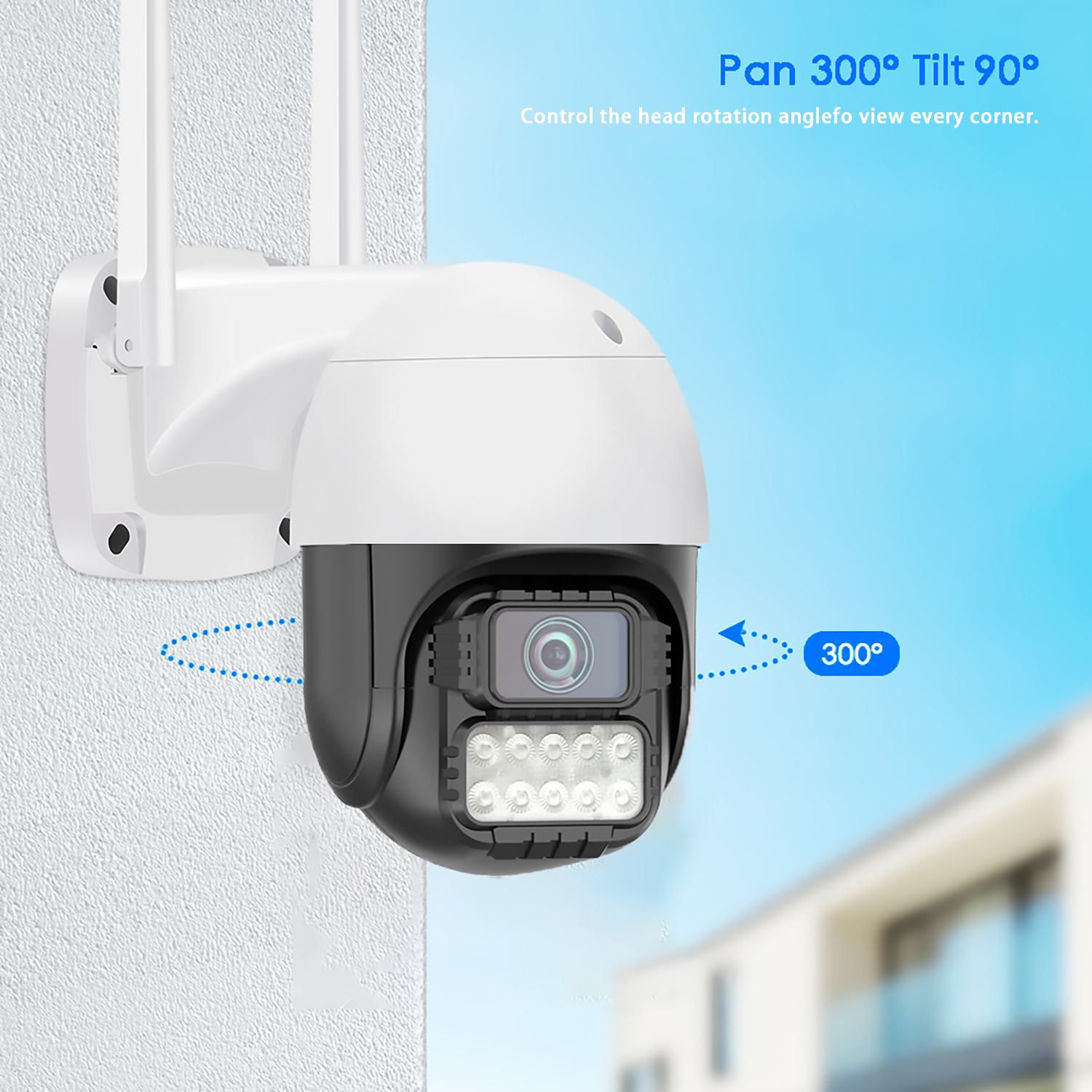

| Irradiation Rotation Angle | Rotate 320 degrees horizontally left and right and 90 degrees vertically | ||
| Supporting Agreement | XM private agreement ONVIF protocol / support to expand RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols | ||

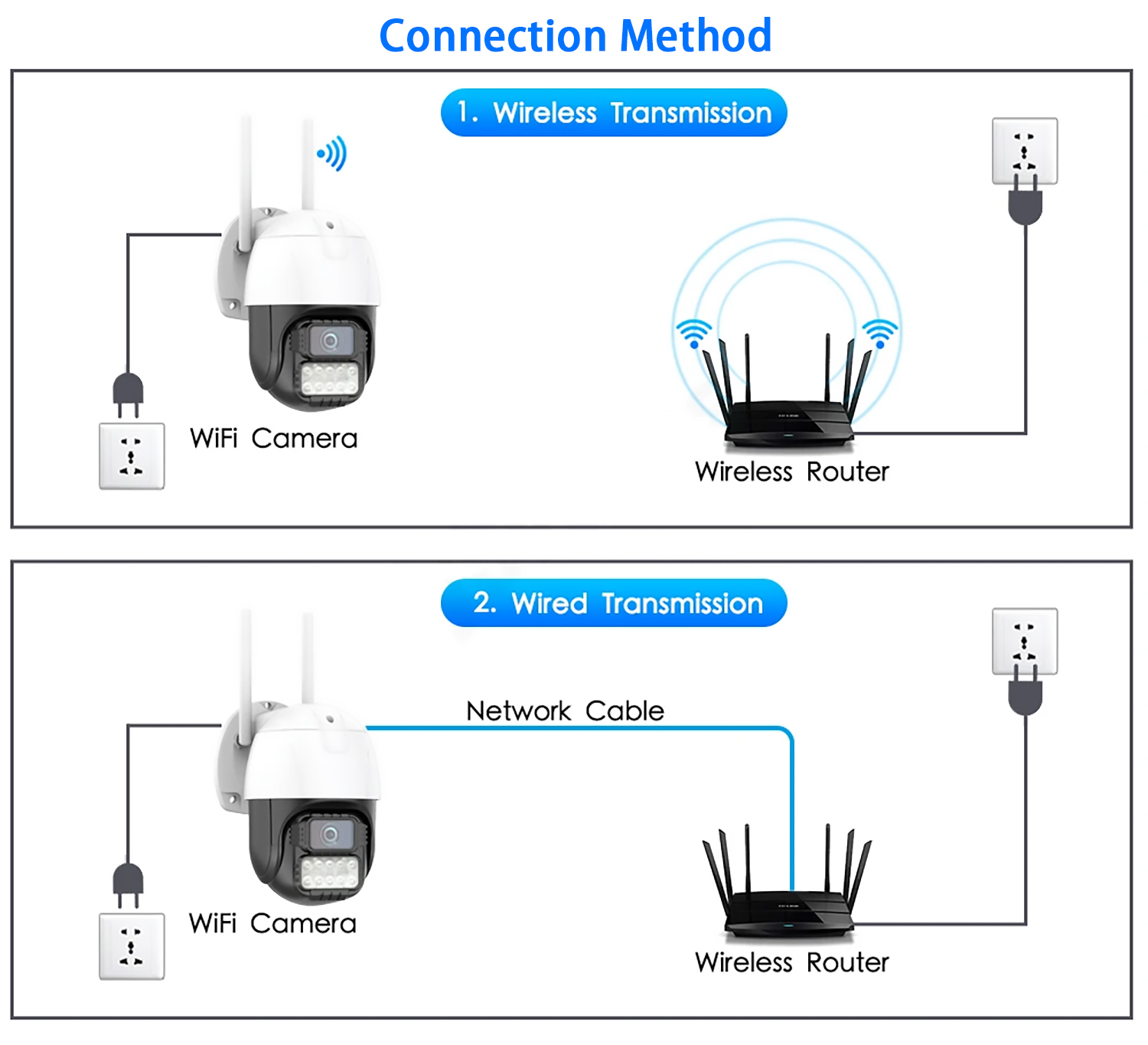

| Interface | Wired Interface | 1 RJ45 10M/100M adaptive Ethernet port | |
| Storage Interface | Micro SD card (max. 8-128G) | ||
| Wireless Parameter | WIFI standard | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||
| Other Range | Power Consumption | 6W MAX | |
| Product Size | 160*107*107mm | ||
| Color Box Size | 250*213*127mm | ||

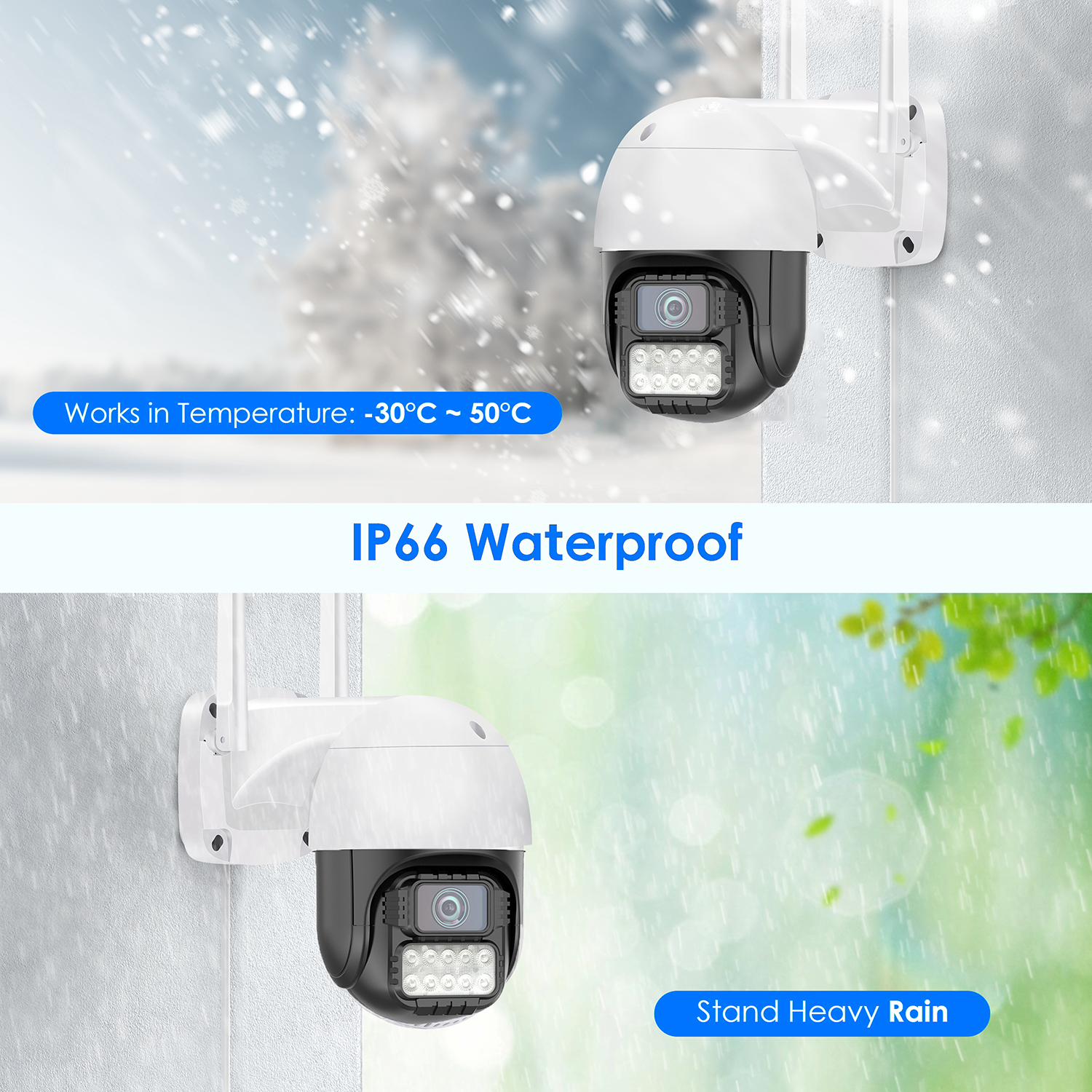

| Temperature and Humidity | Zero 10 ° C -60 ° C, humidity less than 90% [no condensation] | ||
| Power Supply | DC 12V ± 10% | ||
| Weight | Net weight: 486g Gross weight: 746g (Note: actual product) | ||
FAQ
Q1: Is your company a trading company or factory? Are you reliable?
A1: We are a factory established in Guangdong, with professional marketing team. We are a comprehensive industry and trade company.
Q2: What's the MOQ?
A2: We have the lowest MOQ in the market. Even 100pc is acceptable. The more you order, the better the price will be. Pls contact us for more details.
Q3: Could you make OEM/ODM order?
A3: Yes. We provide OEM&ODM service for customers. We have strong technical team. Supporting customized logo, packaging box, manual and software language.
Q4: How do you ship the goods?
A4: Normally we ship by DHL, UPS, TNT, FedEx etc.Fast transit time & Low cost is the first priority. We will choose the most suitable shipping way for our customers.For bulk orders, we have long-term cooperation shipping forwarder with competitive price.
Q5: What is the delivery time?
A5: For sample orders, we can ship the goods within 5 days. For bulk orders, we can ship in 10 working days.
Q6: Which payment can be accepted?
A6: T/T,Western Union etc.
Q7: Does the order amount need to be paid in a lump sum?
A7: For bulk orders, 30% deposit and balance before shipment, all by T/T.
Q8: What is the MOQ that can be customized?
A8: Logo can be customized for 10 pcs, and packaging box and manuals in different languages can be customized for 300 pcs.
