| Quantity: | |
|---|---|
IAS-550A3-LGMS648
OEM Customer brand
8471419000
MODEL: | ZAS-550A3-LGMS648 | DESCRIPTION: |
PANEL SPECIFICATION | ||
Panel Brand | LG (Option) | |
Panel Model | LC550EGY (Option) | |
Diagonal Size | 65" | |
Resolution | 3840×2160 | |
Contrast Ratio | 1200:1 | |
Viewing Angle (H/V) | 178°(H)×178°(V) | |
Response Time | 6ms | |
Transmittance | 5.38% | |
Frame Rate | 60Hz | |
Brightness | ≧320cd/m2 | |
MOTHERBOARD ELECTRONIC SOLUTION | ||
Motherboard Model | XD.M648.B | |
Processor | Quad-core Cortex-A53 | |
Main Chipset | MSD6A648WY-8 | |
CPU Frequency | 1.5GHz | |
DDR Size | 2GB | |
eMMC Flash | 8GB Standard, 16GB/32GB (Option) | |
Operating System | Android 6.0 | |
Touch Point | Simutaneous 10 points of infrared touch | |
TERMINAL CONFIGURATION | ||
TERMINAL | Qty | FEATURES |
RS232 UART input/outpu | 1 | DB9 type |
Earphone/Line output | 1 | Mini earphone Φ3.5mm jack |
PC Audio input | 1 | Mini earphone Φ3.5mm jack |
VGA input(15pin) | 1 | Up to 1920×1080 @60HZ |
Coaxial out | 1 | PCM/RAW |
Touch input/output | 1 | USB2.0 B type |
USB2.0 input/output | 2 | software upgrade, multimedia play 4K@60Hz |
RJ45 network input | 1 | 10/100M auto﹣identification and DHCP |
HDMI input | 2 | HDMI 1(ARC) 480i/p,720p,1080i/p,2160P |
Built-in WIFI module | 1 | 2.4G single frequency single antenna |
Pluggable OPS PC | 1 | Size 196mm(L)*180mm(W)*33mm(H) |
OPS SYSTEM CONFIGURATION (Option) | ||
Processor | Intel® Core™ i3-4160 | |
Chipset | Intel® H81 | |
DDR Size | 4GB | |
Storage | HDD 500GB | |
Operatng System | Windows (7/10/…) | |
OPS TERMINAL (Option) | ||
TERMINAL | Qty | FEATURES |
RJ45 network input | 1 | 10/100M auto﹣identification and DHCP |
WIFI module | 1 | 2.4G single frequency dual antenna |
VGA output(15pin) | 1 | Up to 1920×1080 @60HZ |
HDMI output | 1 | Up to 3840×2160 @60HZ (4K UHD) |
USB2.0 input/output | 4 | Read and write data |
USB3.0 input/output | 2 | Read and write data |
LINE output | 1 | Φ3.5mm jack |
MIC input | 1 | Φ3.5mm jack |
ACCESSORIES IN THE BOX | ||
Remote control | 1 pcs | |
Wall bracket | 1 pcs | |

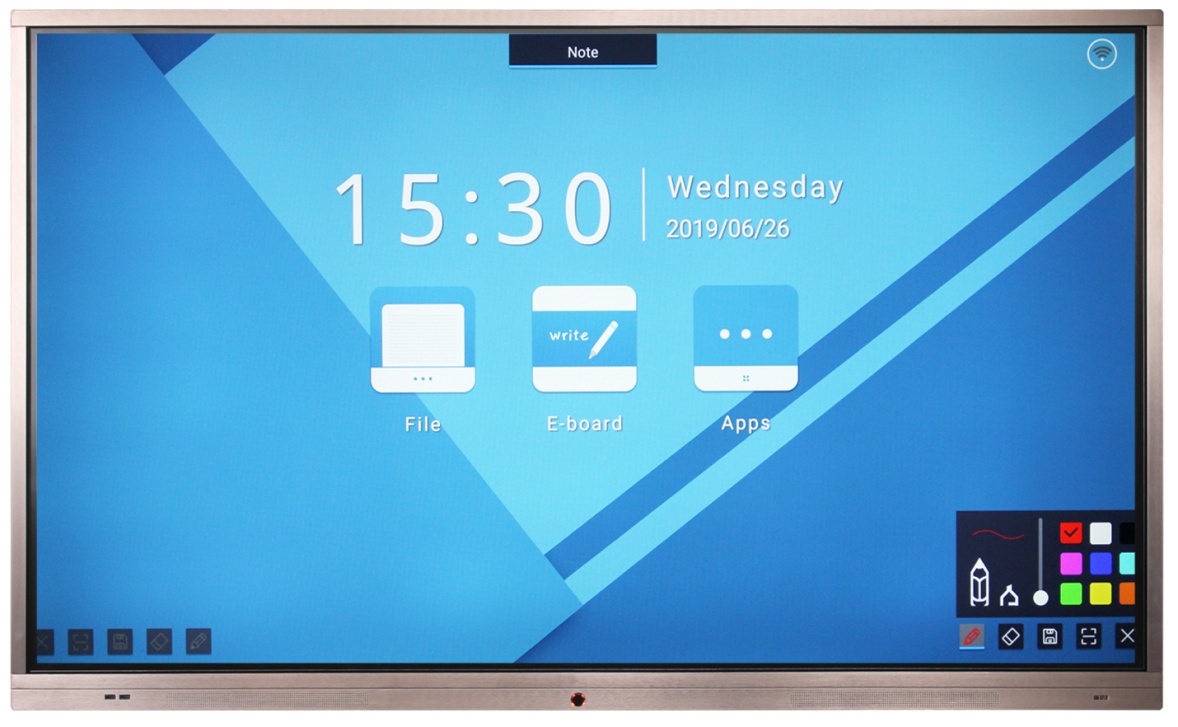

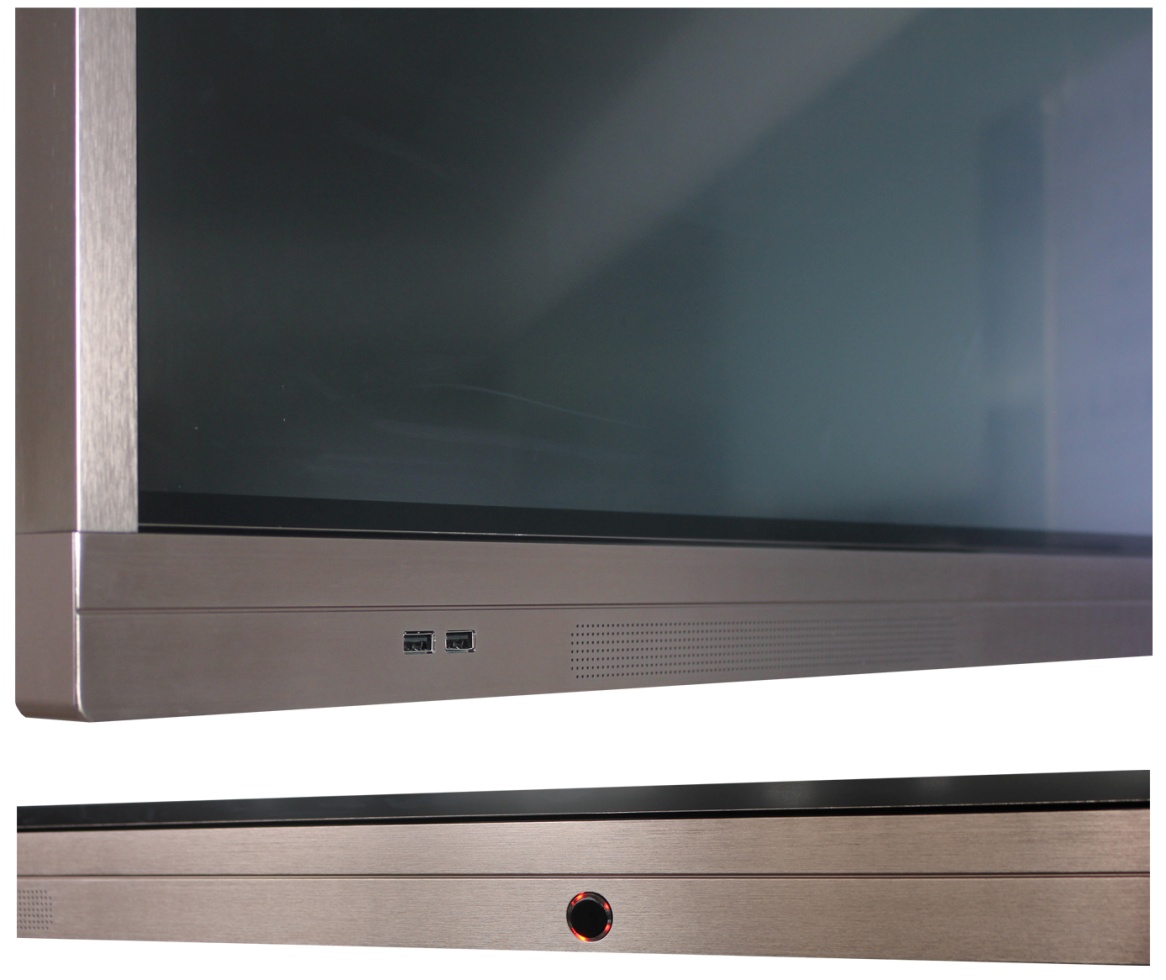

FRONT VIEW

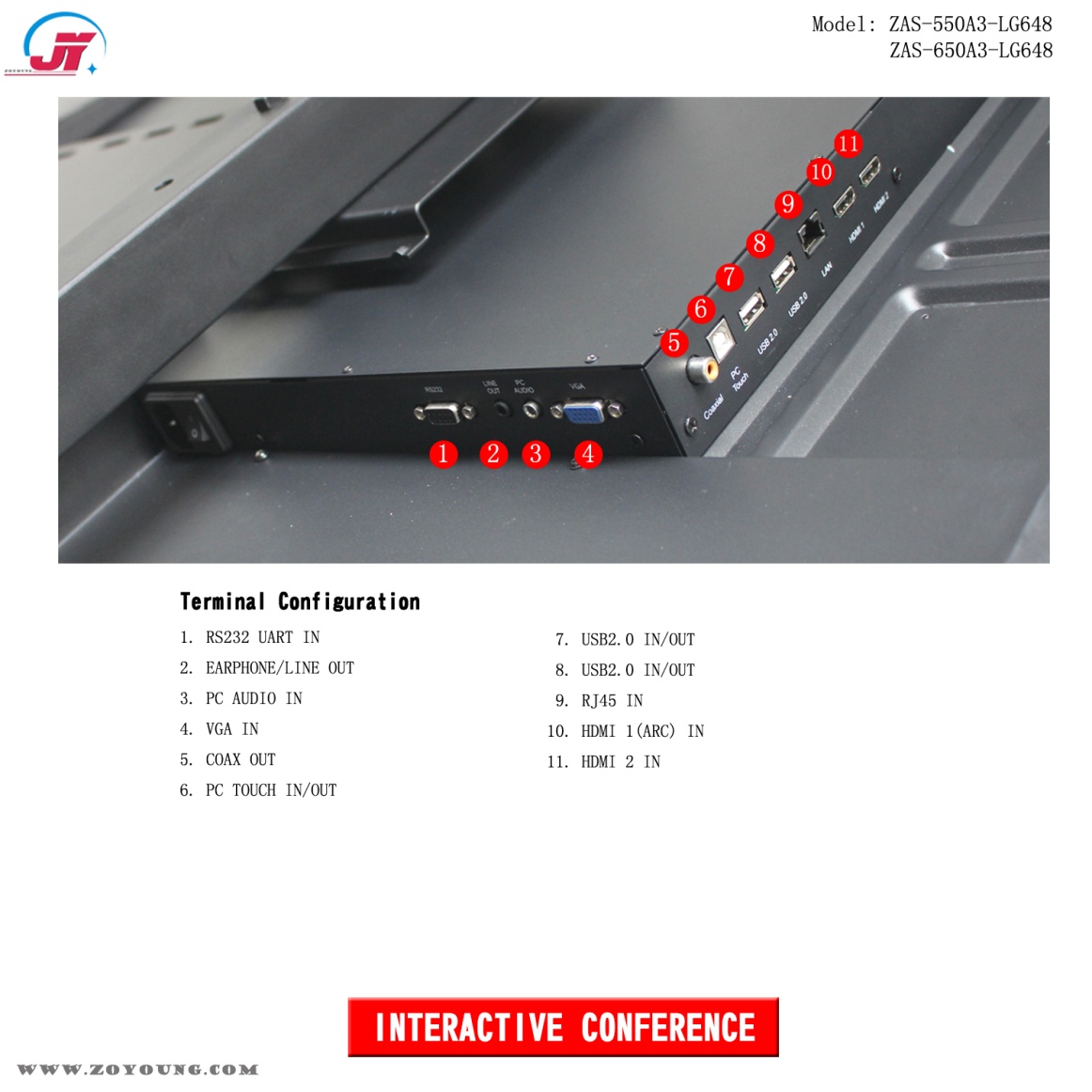

TERMINAL INTERFACE

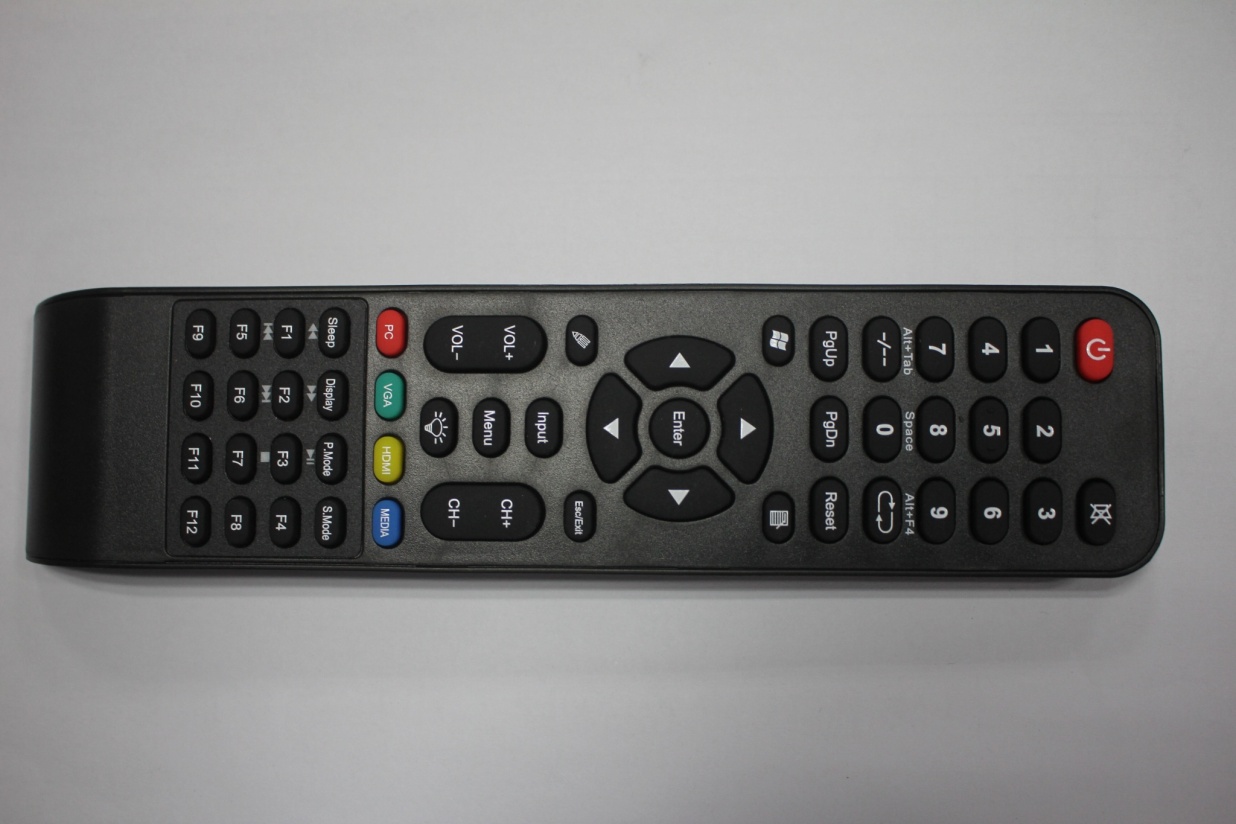

REMOTE

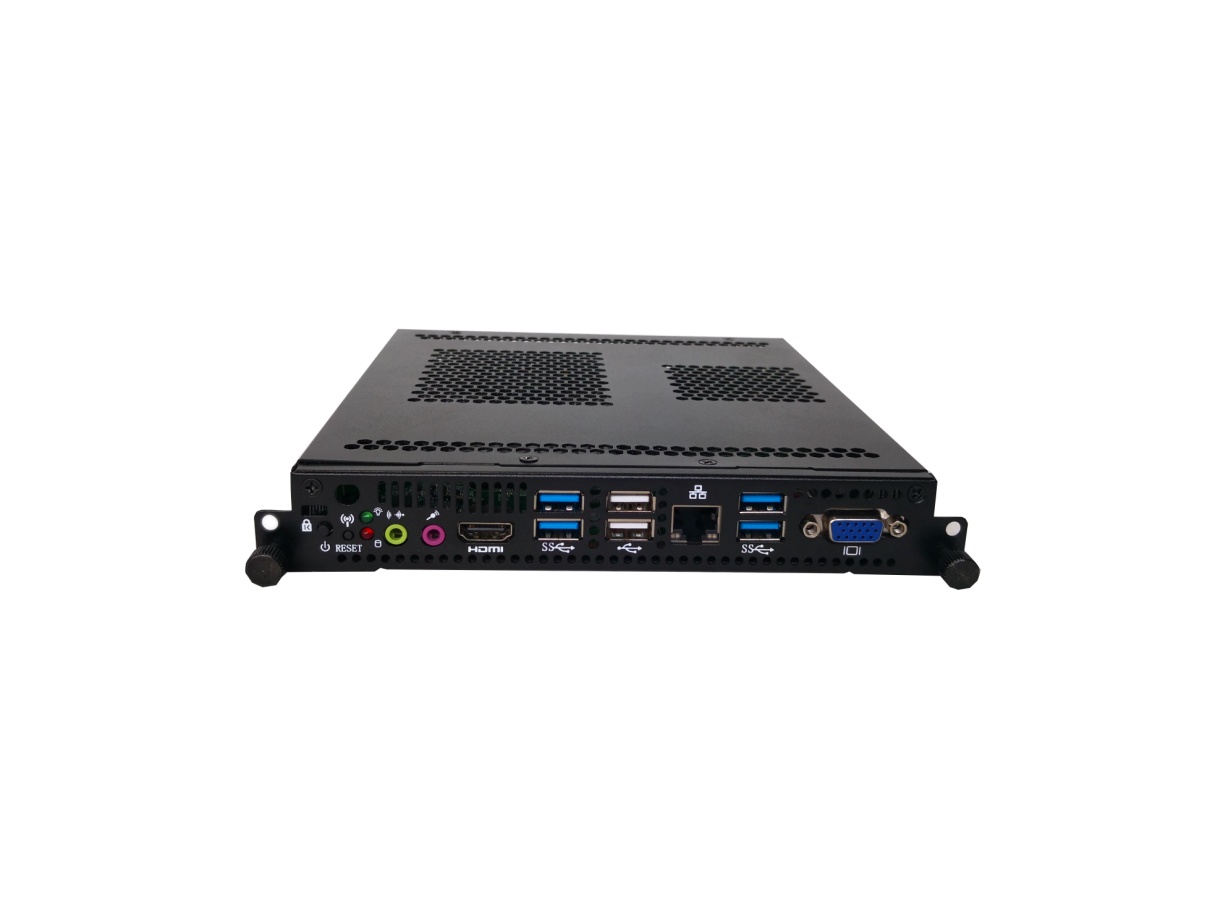

OPS PC (Option)
