1. Infrared Touch Set Product Specification
| MODEL: | ZAS-650A3-LGMS648 | DESCRIPTION: 65 inch 4K UHD Infrared Touch Screen Interactive Diplay |
| PANEL SPECIFICATION |
| Panel Brand | LG (Option) |
| Panel Model | LC650EGY (Option) |
| Diagonal Size | 65" |
| Resolution | 3840×2160 |
| Contrast Ratio | 1200:1 |
| Viewing Angle (H/V) | 178°(H)×178°(V) |
| Response Time | 6ms |
| Transmittance | 5.38% |
| Frame Rate | 60Hz |
| Brightness (LED) | ≥320cd/m2 |
| MOTHERBOARD ELECTRONIC SOLUTION |
| Motherboard Model | XD.M648.B |
| Processor | Quad-core Cortex-A53 |
| Main Chipset | MSD6A648WY-8 |
| CPU Frequency | 1.5GHz |
| DDR Size | 2GB |
| eMMC Flash | 8GB Standard, 16GB/32GB (Option) |
| Operating System | Android 6.0 |
| Touch Point | Simutaneous 10 points of touch |
| TERMINAL CONFIGURATION |
| TERMINAL | Qty | FEATURES |
| RS232 UART input/outpu | 1 | DB9 type |
| Earphone/Line output | 1 | Mini earphone Φ3.5mm jack |
| PC Audio input | 1 | Mini earphone Φ3.5mm jack |
| VGA input(15pin) | 1 | Up to 1920×1080 @60HZ |
| Coaxial out | 1 | PCM/RAW |
| Touch input/output | 1 | USB2.0 B type |
| USB2.0 input/output | 2 | Software upgrade, multimedia play 4K@60Hz |
| RJ45 network input | 1 | 10/100M auto-identification and DHCP |
| HDMI input | 2 | HDMI 1(ARC) 480i/p,720p,1080i/p,2160P |
| Built-in WIFI module | 1 | 2.4G single frequency single antenna |
| Pluggable OPS PC | 1 | Size 196mm(L)*180mm(W)*33mm(H) |
| POWER PARAMETERS |
| Power Source | 100-240VAC 50/60HZ |
| Power ON consumption | <230W |
| Standby consumption | <0.5W |
| Maximum audio output power | 2×8W |
| OPS SYSTEM CONFIGURATION (Option) |
| Processor | Intel® Core™ i3-4160 |
| Chipset | Intel® H81 |
| DDR Size | 4GB (Option) |
| Storage | HDD 500GB (Option) |
| Operatng System | Windows (7/10/…) |
| OPS TERMINAL (Option) |
| TERMINAL | Qty | FEATURES |
| RJ45 network input | 1 | 10/100M auto-identification and DHCP |
| WIFI module | 1 | 2.4G single frequency dual antenna |
| VGA output(15pin) | 1 | Up to 1920×1080 @60HZ |
| HDMI output | 1 | Up to 3840×2160 @60HZ (4K UHD) |
| USB2.0 input/output | 4 | Read and write data |
| USB3.0 input/output | 2 | Read and write data |
| LINE output | 1 | Φ3.5mm jack |
| MIC input | 1 | Φ3.5mm jack |
| ACCESSORIES IN THE BOX |
| Remote control | 1 pcs |
| Wall bracket | 1 pcs |
| AC power cord | 1 pcs |
| Touch pen | 1 pcs |
| PACKING & CONTAINER LOAD |
| Carton box size | 1640(L)×215(W)×1055(H)mm |
| 40"HQ | 172 pcs |
2. Application Scenarios
Use for meetings, classrooms, training, etc.
3. Reference pictures

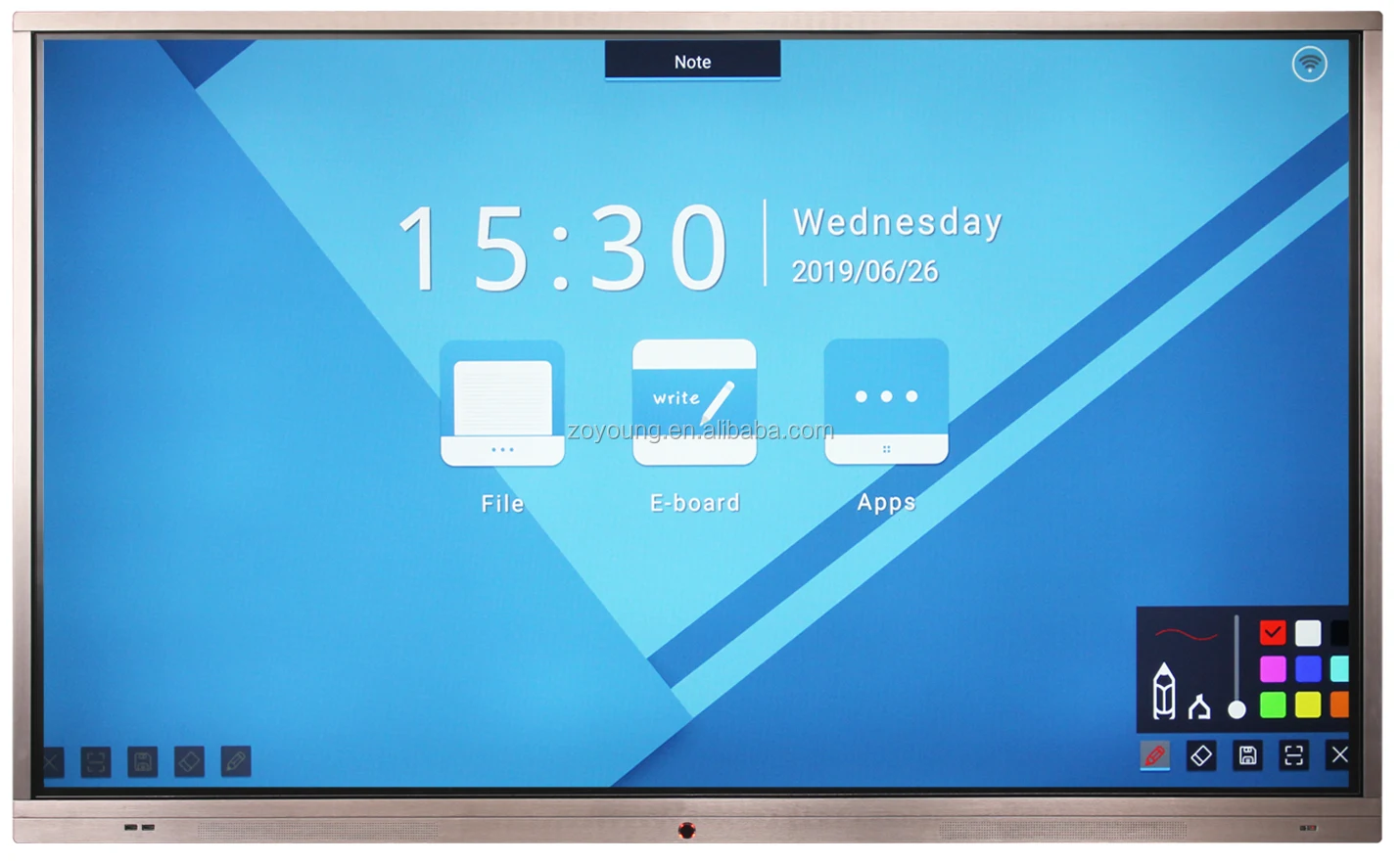

∗ FRONT VIEW PICTURE
∗ TERMINAL INTERFACE PICTURE
∗ BACK VIEW PICTURE
∗ REMOTE PICTURE
