MODEL:	IDC-650DQ1-HQRT2861	DESCRIPTION:
SCREEN SPECIFICATION
Screen Brand	LG (Option)
Screen Model	LC550EGY (Option)
Diagonal Size	65"
Screen Type	LED
Aspect Ratio	16:09
Resolution	3840(H)×2160(V) 4K UHD
Contrast Ratio	1200:1
Viewing Angle (H/V)	178°(H)/178°(V)
Response Time	≦8ms
Refreshing Frequency	60Hz
Brightness with glass (typ)	≧200cd/m2
Life Time	30000 Hours
ANDROID SYSTEM CONFIGURATION
Motherboard Model	HK.T.RT2861P838
Processor	Quad-core Cortex-A53
Main Chipset	RTD2861R
CPU Frequency	1.1GHz
RAM	1.5GB Standard
ROM	8GB Standard
Operating System	Android 7.1
TOUCH SYSTEM
Sensing Type	Infrared recognition
Touch Point	Simutaneous 10 touch points
Writing Response	Single-touch ≥Φ6mm and multi-touch ≥Φ8mm
Touch Tool	Finger, Opaque objects
Surface Hardness	3mm Toughened Glass

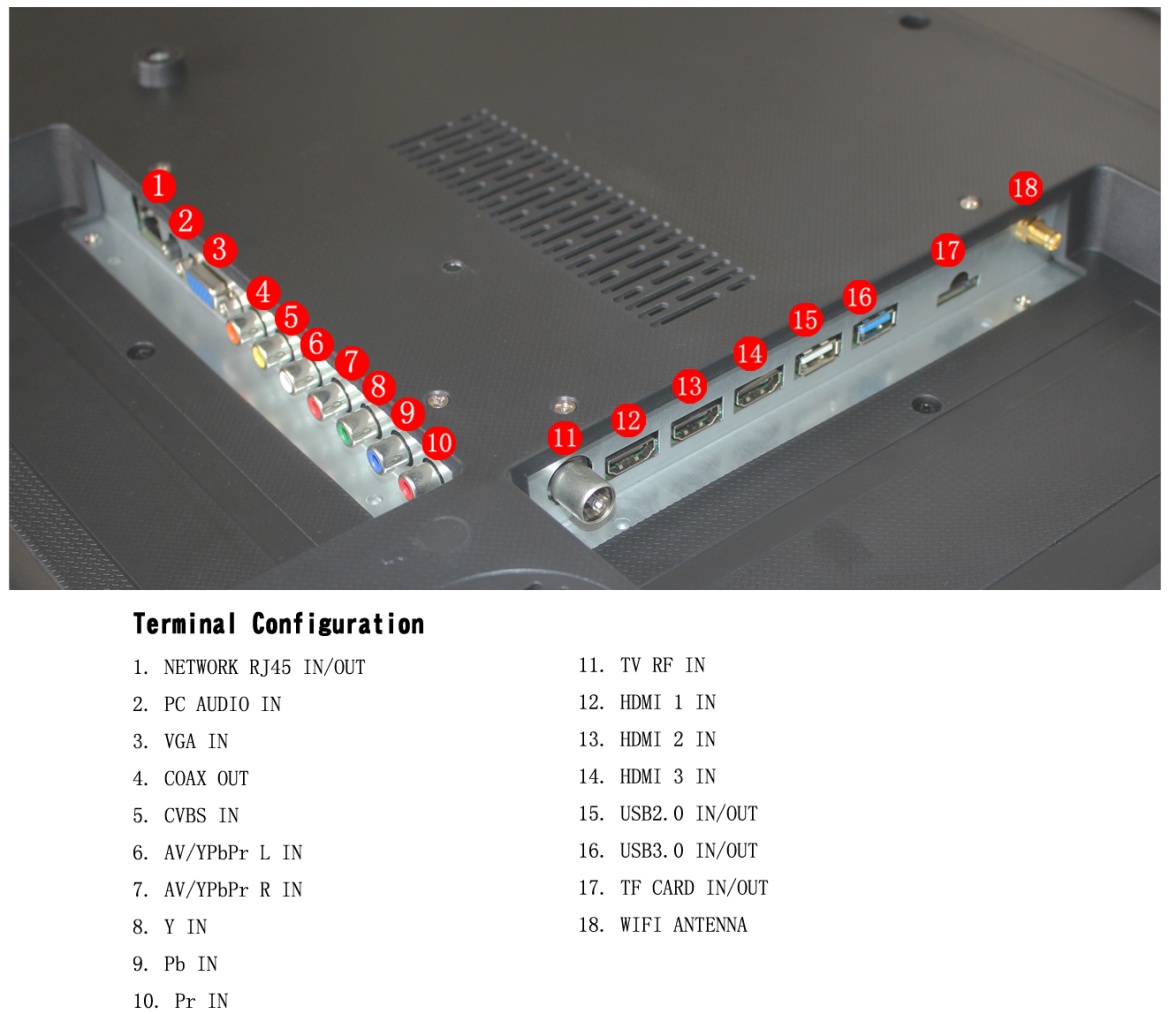

ANDROID SYSTEM TERMINAL CONFIGURATION
TERMINAL	Qty	FEATURES
RJ45 network input	1	10/100M auto﹣identification and DHCP
PC Audio input	1	Earphone Input
VGA input(15pin)	1	Up to 1920×1080 @60HZ
Coaxial out	1	PCM/RAW (RCA jack)
CVBS input	1	PAL,NTSC (RCA jack)
AV/YPbPr Left input	1	RCA jack
AV/YPbPr Right input	1	RCA jack
Y input	1	RCA jack
Pb input	1	RCA jack
Pr input	1	RCA jack
HDMI input	3	480i/480p/576i/576p/720p/1080i/1080p/2160p
USB2.0 input/output	1	software upgrade, multimedia play 4K@60Hz
USB3.0 input/output	1	software upgrade, multimedia play 4K@60Hz
TF Card input/output	1	Support MAX 128GB SD card
WIFI module	1	2.4G single frequency single antenna
POWER PARAMETERS
Power Source	100﹣240VAC 50/60HZ
Power ON consumption	＜180W
Standby consumption	＜0.5W
Maximum audio output power	2×8W
ACCESSORIES IN CARTON BOX

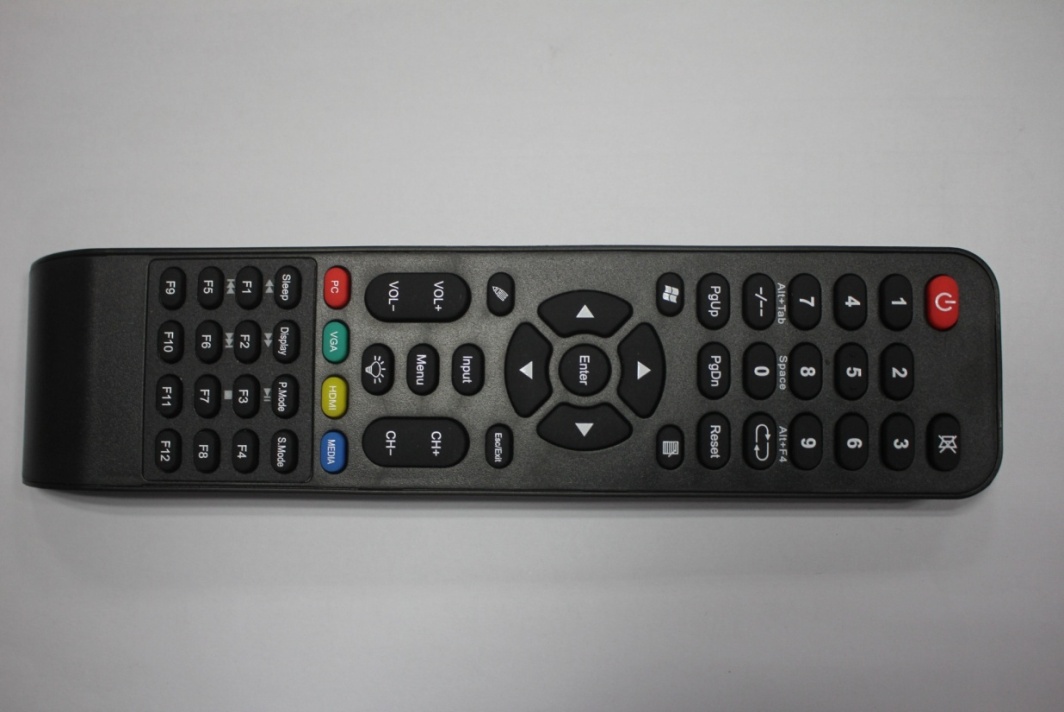

Remote control	1 pcs
Writing Pen	1 pcs
PACKING & CONTAINER LOAD
Carton box size	1360(L)×155(W)×900(H)mm
40"HQ	353 pcs

MODEL:	IDC-650DQ1-HQRT2861	DESCRIPTION:
SCREEN SPECIFICATION
Screen Brand	LG (Option)
Screen Model	LC550EGY (Option)
Diagonal Size	65"
Screen Type	LED
Aspect Ratio	16:09
Resolution	3840(H)×2160(V) 4K UHD
Contrast Ratio	1200:1
Viewing Angle (H/V)	178°(H)/178°(V)
Response Time	≦8ms
Refreshing Frequency	60Hz
Brightness with glass (typ)	≧200cd/m2
Life Time	30000 Hours
ANDROID SYSTEM CONFIGURATION
Motherboard Model	HK.T.RT2861P838
Processor	Quad-core Cortex-A53
Main Chipset	RTD2861R
CPU Frequency	1.1GHz
RAM	1.5GB Standard
ROM	8GB Standard
Operating System	Android 7.1
TOUCH SYSTEM
Sensing Type	Infrared recognition
Touch Point	Simutaneous 10 touch points
Writing Response	Single-touch ≥Φ6mm and multi-touch ≥Φ8mm
Touch Tool	Finger, Opaque objects
Surface Hardness	3mm Toughened Glass
ANDROID SYSTEM TERMINAL CONFIGURATION
TERMINAL	Qty	FEATURES
RJ45 network input	1	10/100M auto﹣identification and DHCP
PC Audio input	1	Earphone Input
VGA input(15pin)	1	Up to 1920×1080 @60HZ
Coaxial out	1	PCM/RAW (RCA jack)
CVBS input	1	PAL,NTSC (RCA jack)
AV/YPbPr Left input	1	RCA jack
AV/YPbPr Right input	1	RCA jack
Y input	1	RCA jack
Pb input	1	RCA jack
Pr input	1	RCA jack
HDMI input	3	480i/480p/576i/576p/720p/1080i/1080p/2160p
USB2.0 input/output	1	software upgrade, multimedia play 4K@60Hz
USB3.0 input/output	1	software upgrade, multimedia play 4K@60Hz
TF Card input/output	1	Support MAX 128GB SD card
WIFI module	1	2.4G single frequency single antenna
POWER PARAMETERS
Power Source	100﹣240VAC 50/60HZ
Power ON consumption	＜180W
Standby consumption	＜0.5W
Maximum audio output power	2×8W
ACCESSORIES IN CARTON BOX
Remote control	1 pcs
Writing Pen	1 pcs
PACKING & CONTAINER LOAD
Carton box size	1360(L)×155(W)×900(H)mm
40"HQ	353 pcs
