MODEL:	ILD-860Q-XZMS648-OPS		DESCRIPTION:
SCREEN SPECIFICATION
Screen Brand		LG (Option)
Screen Model		LC860EQY (Option)
Diagonal Size		86"
Screen Type		LED
Aspect Ratio		16:09
Resolution		3840(H)×2160(V) 4K UHD
Contrast Ratio		1200:1
Viewing Angle (H/V)		178°(H)/178°(V)
Response Time		≦8ms
Refreshing Frequency		60Hz
Brightness with glass (typ)		≧380cd/m2
Life Time		30000 Hours
ANDROID SYSTEM CONFIGURATION
Motherboard Model		DZ-B-85P-VB-V1.1
Processor		Quad-core Cortex-A53
Main Chipset		MSD6A648WY-8
CPU Frequency		1.5GHz
RAM		2GB Standard, 1.5GB (Option)
ROM		8GB Standard, 32GB (Option)
Operating System		Android 6.0
TV RECEIVING SYSTEM
ATV	Reception Range	48.25MHz～863.25MHz
	Colour System	NTSC,PAL,SECAM
	Sound System	BG,DK,I
TOUCH SYSTEM
Sensing Type		Infrared recognition
Touch Point		Simutaneous 10 touch points
Writing Response		Single-touch ≥Φ6mm and multi-touch ≥Φ8mm
Touch Tool		Finger, Opaque objects
Surface Hardness		4mm Toughened Glass
ANDROID SYSTEM TERMINAL CONFIGURATION
TERMINAL		Qty	FEATURES
Touch input/output		1	USB2.0 B type
HDMI input		2	480i/480p/576i/576p/720p/1080i/1080p/2160p
RJ45 network input		1	10/100M auto﹣identification and DHCP
PC Audio input		1	Earphone Input
VGA input(15pin)		1	Up to 1920×1080 @60HZ
YPbPr input		1	Mini earphone jack
AV input		1	PAL,NTSC (Mini earphone jack)
AV output		1	Mini earphone jack
Earphone output		1	Earphone jack
Cable/antenna input		1	75Ω IEC type
Coaxial out		1	PCM/RAW
TF Card input/output		1	Support MAX 128GB SD card
RS232 UART input/output		1	DB9 type
USB2.0 input/output		3	software upgrade, multimedia play 4K@60Hz
WIFI module		1	2.4G single frequency single antenna
POWER PARAMETERS
Power Source		100﹣240VAC 50/60HZ
Power ON consumption		＜450W
Standby consumption		＜0.5W
Maximum audio output power		2×12W
OPS PC MODULE CONFIGURATION (Option)

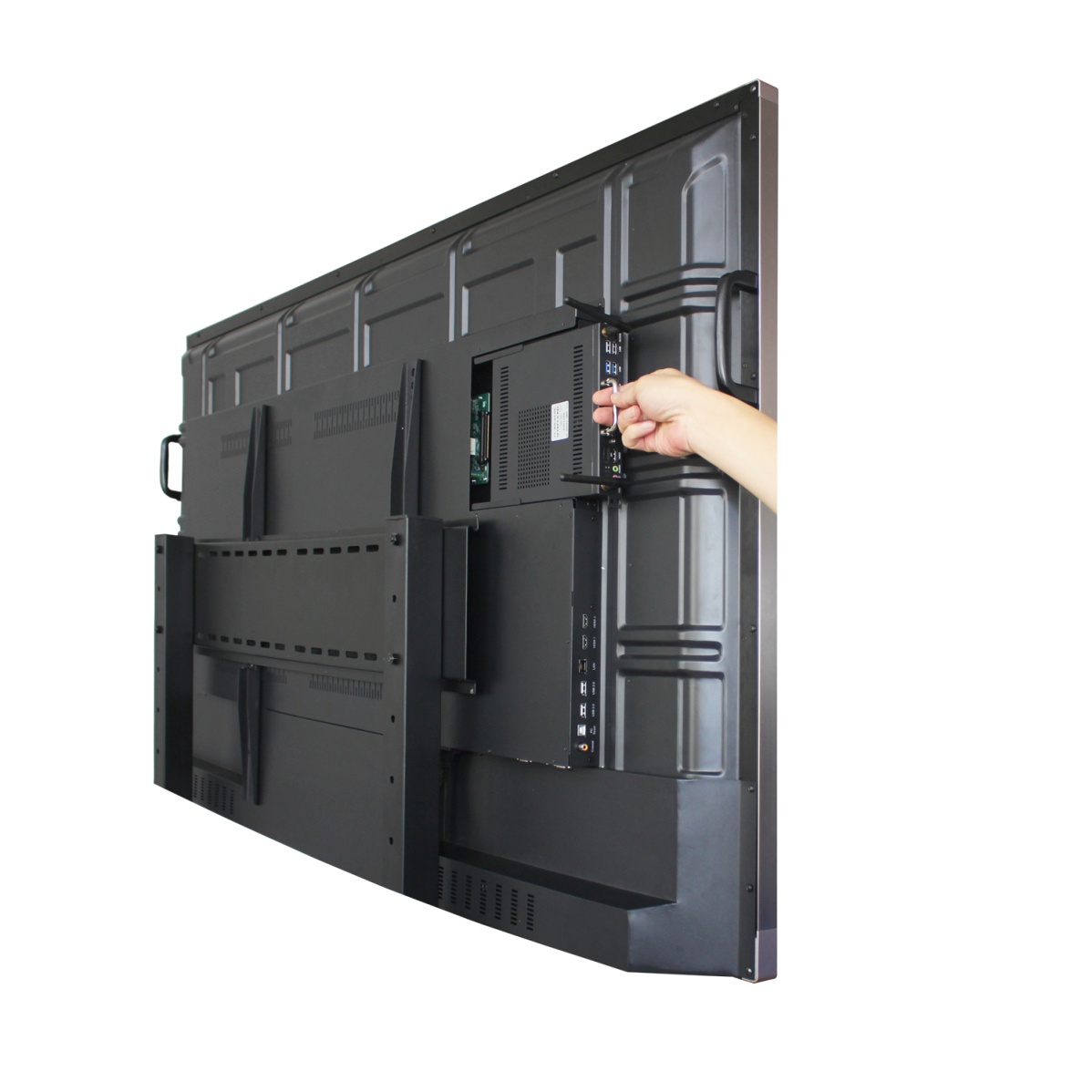

Detachable OPS PC module		Size 196mm(L)180mm(W)33mm(H)
Processor		Intel® Core™ i3/i5/i7 (Option)
RAM		4GB/8GB (Option)
Storage		128GB/256GB SSD or 500GB/1TB HDD (Option)
Compatible Operating System		DOS/Windows 7 & above/Linux/Mac
OPS PC MODULE TERMINAL (Option)
TERMINAL		Qty	FEATURES
RJ45 network input		1	10/100M auto﹣identification and DHCP
WIFI module		1	2.4G single frequency dual antenna
VGA output(15pin)		1	Up to 1920×1080 @60HZ
HDMI output		1	Up to 3840×2160 @60HZ (4K UHD)
USB2.0 input/output		4	Read and write data
USB3.0 input/output		2	Read and write data
LINE output		1	Φ3.5mm jack
MIC input		1	Φ3.5mm jack
ACCESSORIES IN CARTON BOX

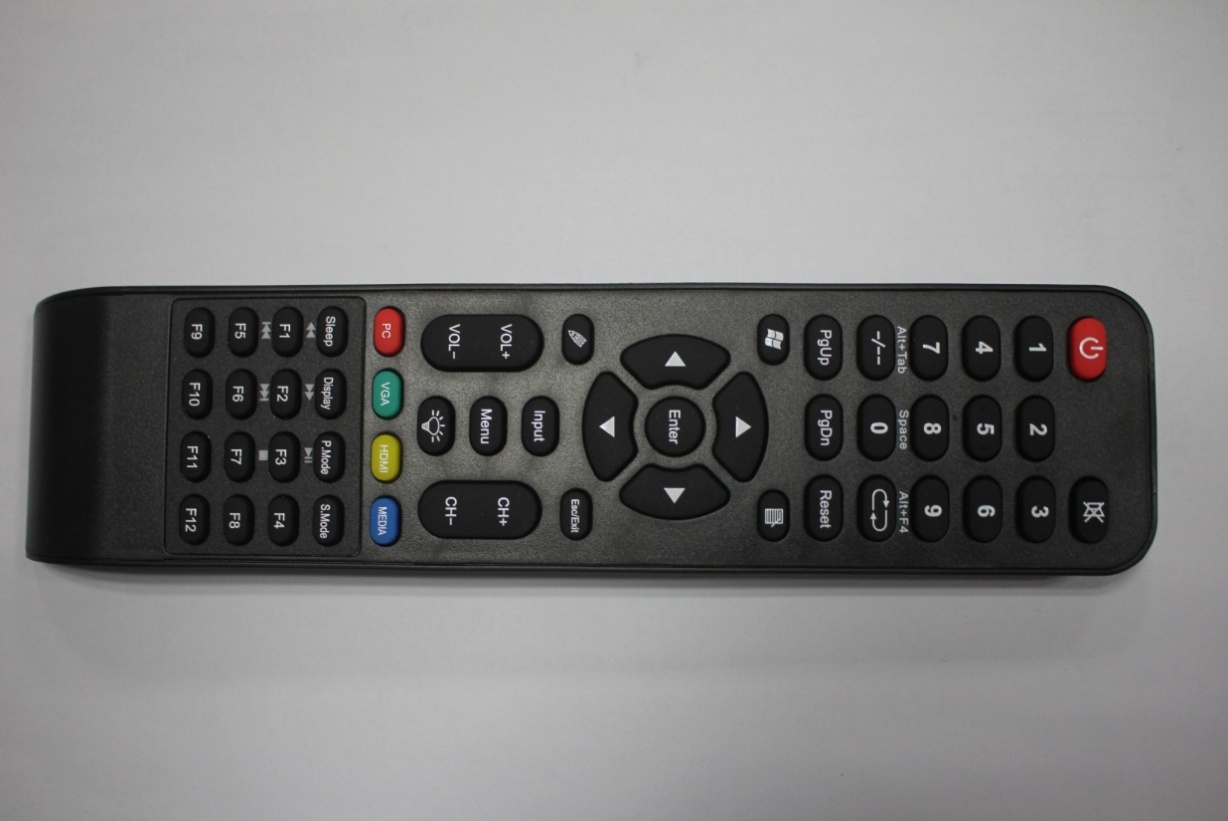

Remote control		1 pcs
Wall bracket		1 pcs
AC Power Cable		1 pcs
Writing Pen		1 pcs

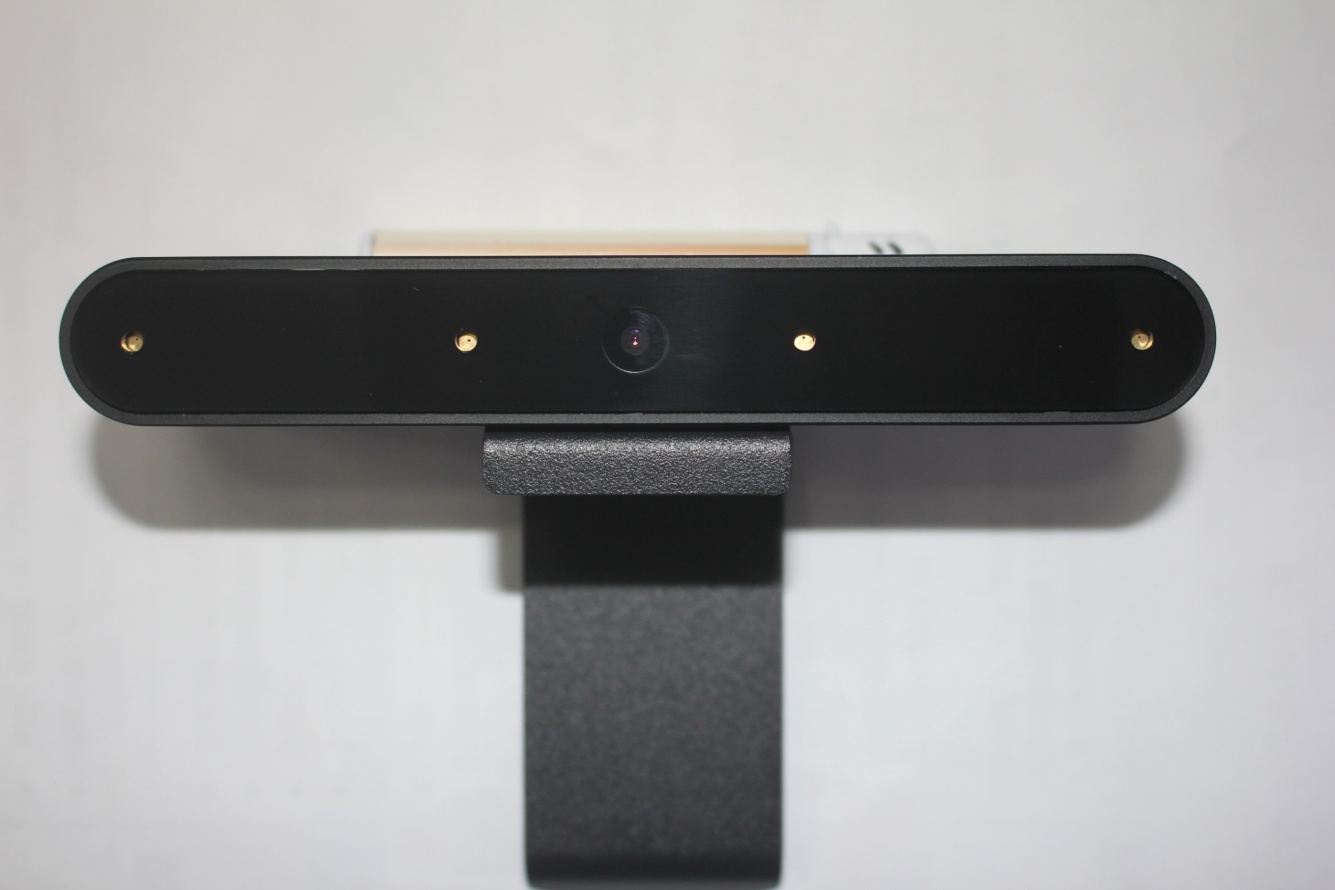

Camera with array microphone		1 pcs 1920×1080 wide angle 4 array (Option)

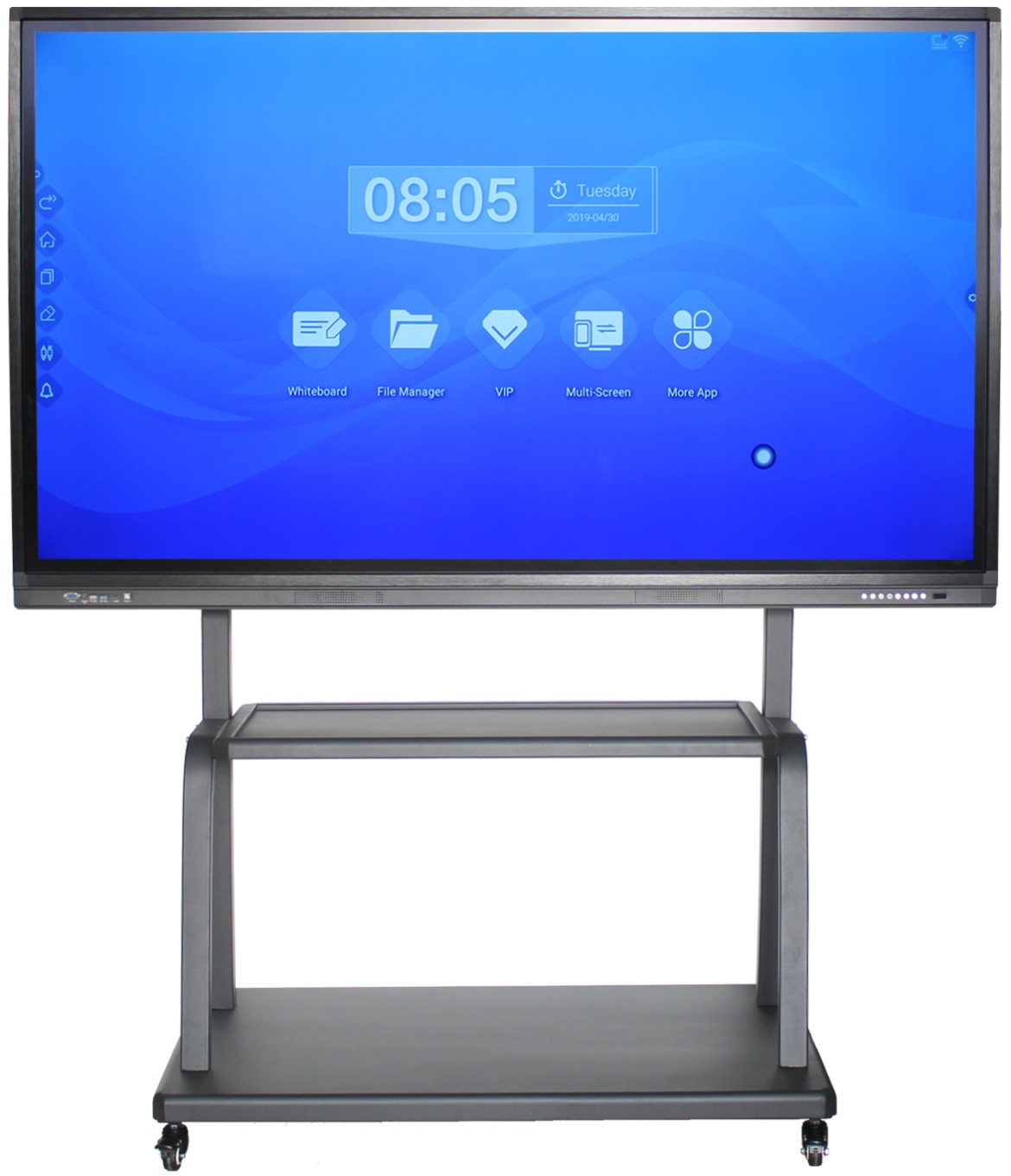

Mobile stand		1 pcs (Option)
PACKING & CONTAINER LOAD
Carton box size		2112(L)×240(W)×1325(H)mm
40"HQ		100 pcs
