| Quantity: | |
|---|---|
ZY-TQ2
OEM Customer brand
8525801390
| Model | ZY-TQ2 | |
| Sensor | 4 million 1 / 3 "F37 low Illuminance CMOS Sensor. | |
| Minimum Illuminance | Color: 0.01Lux @ (F1.2 Lux with IR AGC ON); 0 color. Black and white: 0.001 Lux @ (F1.2 Lux with IR), 0 Lux with IR | |
| Lens | 4mm horizontal vision 87 °, diagonal 104 °. | |
| Image Output | Main stream: 2560*1440 12fps; sub-stream: 800*448@12fps. | |
| Shutter | 1max 50 (1max 60) seconds to 1max 10000 seconds. | |
| Noise Reduction | Support 2D/3D noise reduction. | |
| Wide Dynamic | Support for digital width dynamics. | |
| Night Light Pattern | Lattice 4 infrared black and white night vision / lattice 4 warm night vision full color [manual switch]. | |
| Infrared Radiation Distance | Within 0-30 meters. | |
| Storage Mode | Cloud storage function, free for 30 days; local Micro SD card (supports 8-128G). | |
| Intelligent Analysis | Support PIR human sensor, intelligent double light humanoid recognition alarm. | |

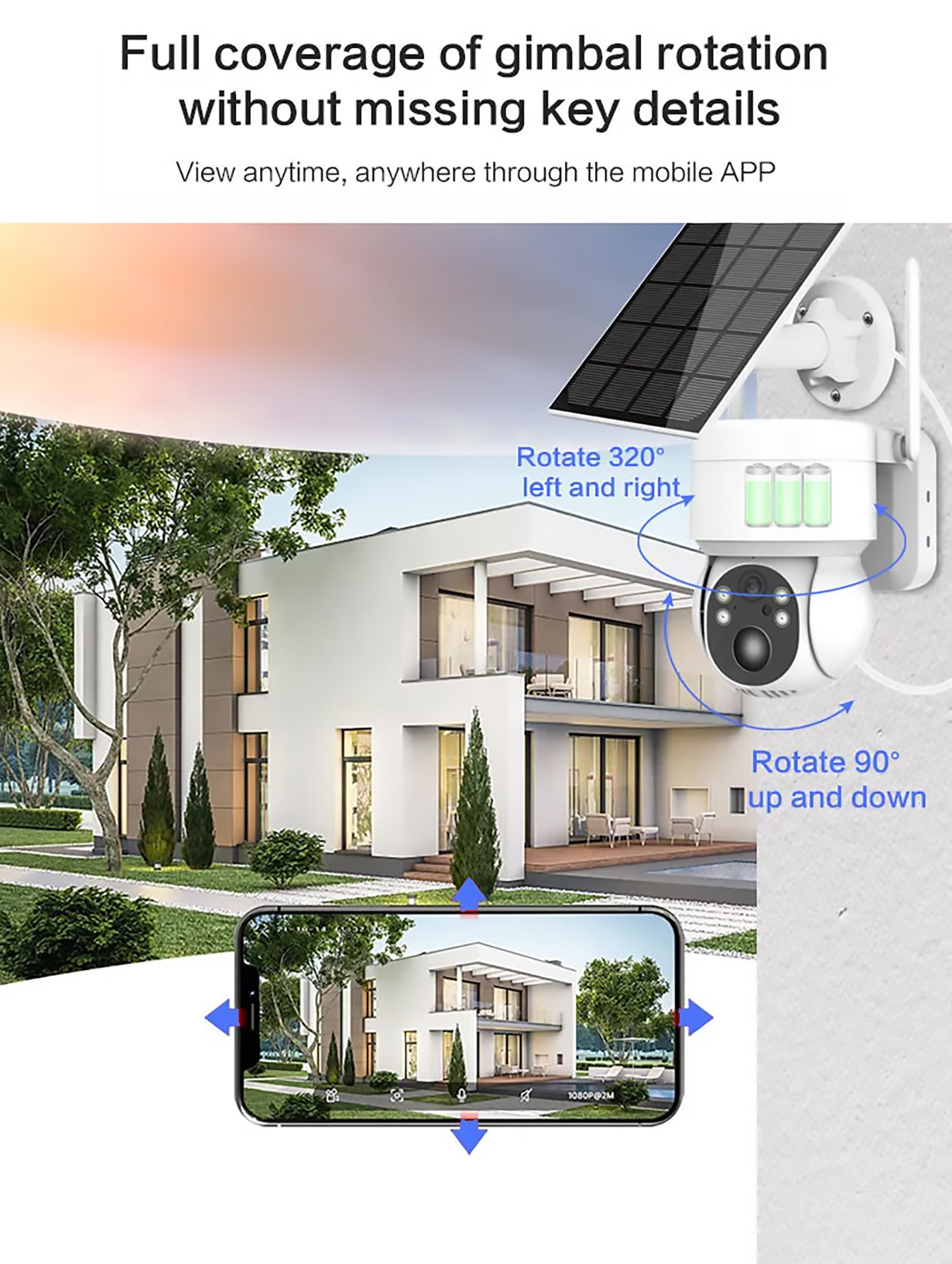

| Monitoring Head | Rotate 320 °left and right, 90 °up and down. | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz. | |
| ONVIF | Not supported. | |
| Mobile Phone Monitoring | Support for mobile monitoring (iOS,Android). | |

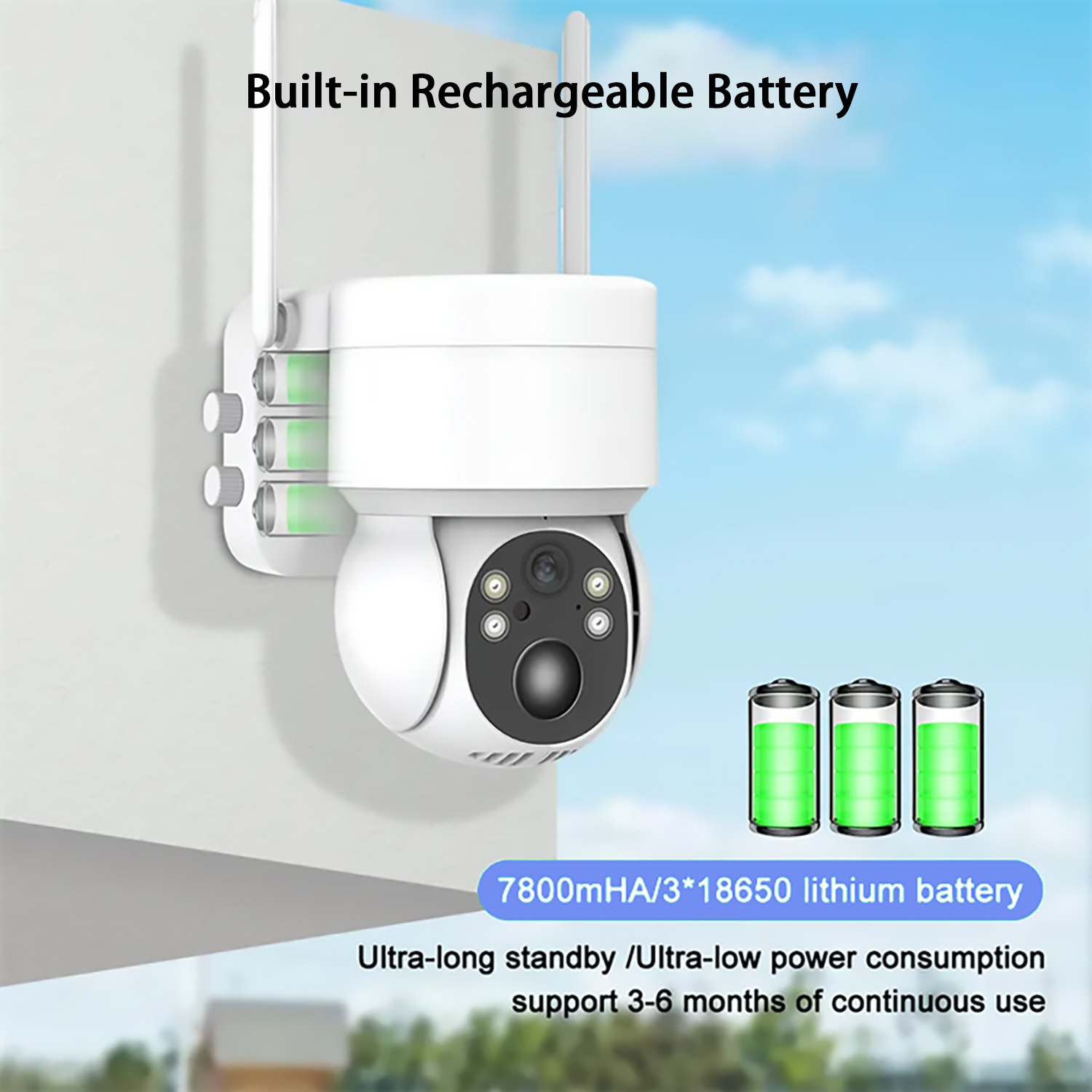

| Power Source | DC5V ±10% / 18650 lithium battery * 3/7500mHA [battery removable]. | |
| Charging Mode | External solar panel 5V Type-c interface can be equipped with 3W solar panel. | |
| Power Consumption | Dormant 800uA, voltage 4.2 V, normal preview 200-300mA. | |

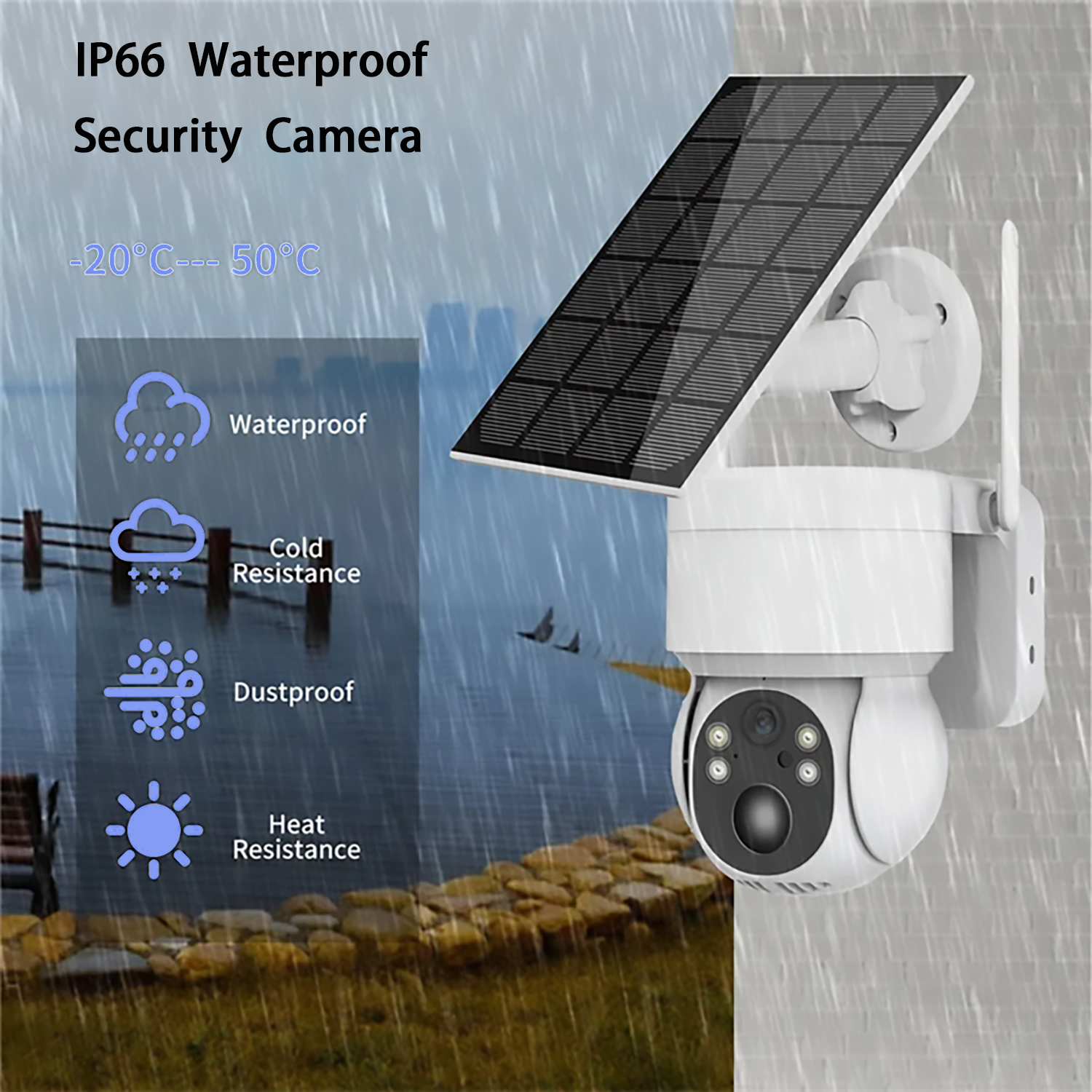

| Temperature and Humidity | Minus 20 ºC-60 ºC, humidity less than 90% [no condensation]. | |
| Weight of Accessories | 18650 Universe 1: 0.069kg solar panels: 0.21kg. | |
| Product Weight | Net weight: 0.65kg gross weight [with battery]: 1.03kg (Note: actual product) | |

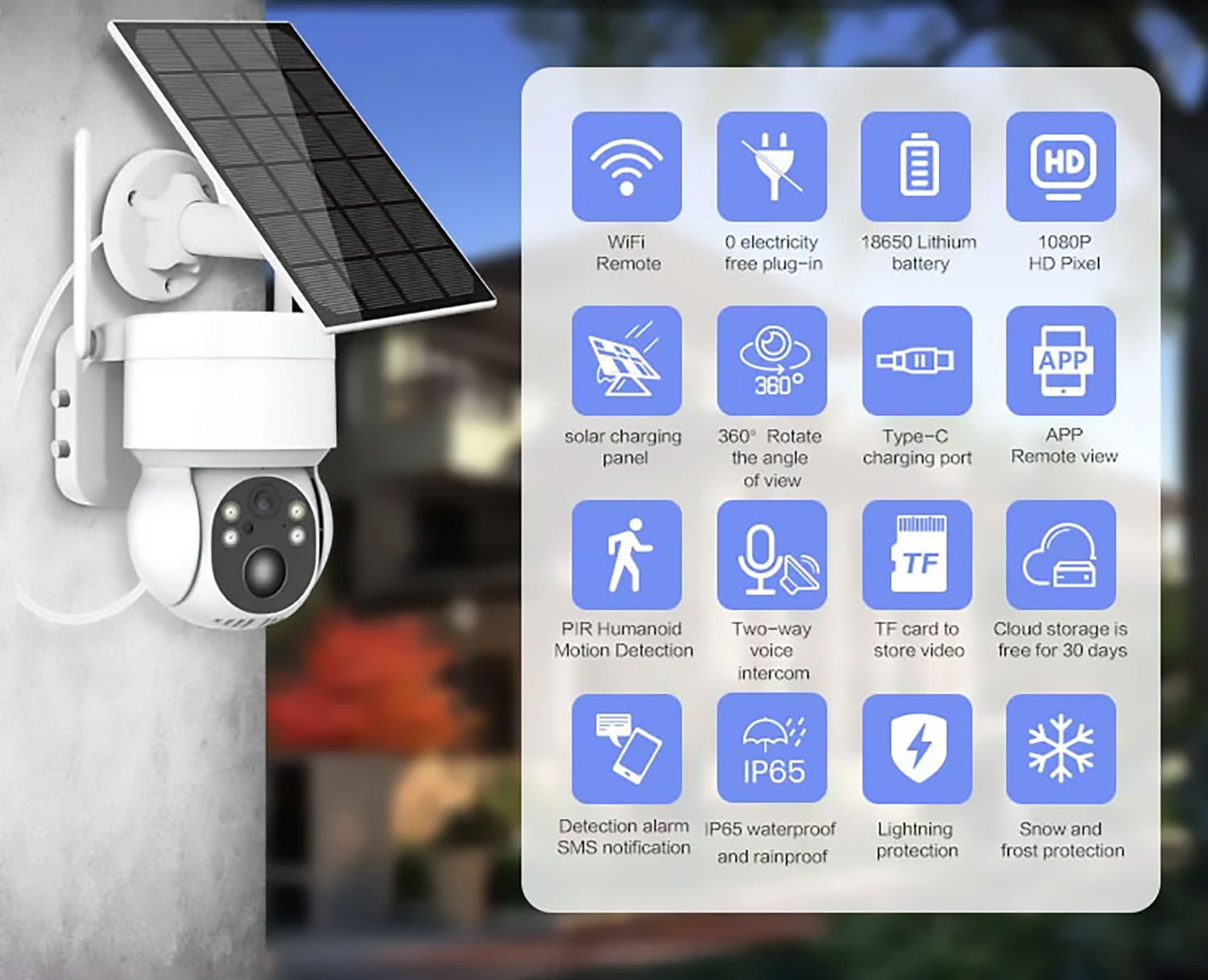

| Feature | 1.The resolution is 4.0m and the image is clear and delicate. 2.PIR somatosensory is supported. 3.Can be built into 3 18650 lithium batteries. 4.APP remote Wake up is supported. 5.Support day-to-night conversion. 6.Powered by DC5V, supported by solar power (external solar power panel is required). 7.WIFI network connection is supported. 8.Audio supports 2D/3D noise reduction and digital wide dynamic. 9.Advanced H.265X video compression technology, ultra-low bit rate, high definition picture quality. 10.Mobile monitoring (for iOS,android) is supported. 11.support a variety of cloud technologies, achieve network penetration, push alarm messages to mobile phones and other functions | |
FAQ
Q1: Is your company a trading company or factory? Are you reliable?
A1: We are a factory established in Guangdong, with professional marketing team. We are a comprehensive industry and trade company.
Q2: What's the MOQ?
A2: We have the lowest MOQ in the market. Even 100pc is acceptable. The more you order, the better the price will be. Pls contact us for more details.
Q3: Could you make OEM/ODM order?
A3: Yes. We provide OEM&ODM service for customers. We have strong technical team. Supporting customized logo, packaging box, manual and software language.
Q4: How do you ship the goods?
A4: Normally we ship by DHL, UPS, TNT, FedEx etc.Fast transit time & Low cost is the first priority. We will choose the most suitable shipping way for our customers.For bulk orders, we have long-term cooperation shipping forwarder with competitive price.
Q5: What is the delivery time?
A5: For sample orders, we can ship the goods within 5 days. For bulk orders, we can ship in 10 working days.
Q6: Which payment can be accepted?
A6: T/T,Western Union etc.
Q7: Does the order amount need to be paid in a lump sum?
A7: For bulk orders, 30% deposit and balance before shipment, all by T/T.
Q8: What is the MOQ that can be customized?
A8: Logo can be customized for 10 pcs, and packaging box and manuals in different languages can be customized for 300 pcs.
