| Quantity: | |
|---|---|
ZY-G2Pro
OEM Customer brand
8525801390
| Model | ZY-G2Pro | |
| Processor | Dual-core 32-bit DSP (GK7202V300), pure hard compression, watchdog. | |
| Sensor | 2 million 1 / 3 "F37 low Illuminance CMOS Sensor. | |
| Minimum Illuminance | Color: 0.01Lux @ (F1.2 Lux with IR AGC ON); 0 color. Black and white: 0.001 Lux @ (F1.2 Lux with IR), 0 Lux with IR | |
| Lens | 4mm horizontal vision 87 °, diagonal 104 °. | |
| Image Output | Main stream: 1920 "1080P" 12fps; sub-stream: 800*448@12fps. | |
| Shutter | 1max 50 (1max 60) seconds to 1max 10000 seconds. | |
| Noise Reduction | Support 2D/3D noise reduction. | |
| Wide Dynamic | Support for digital width dynamics. | |
| Night Light Pattern | Lattice 4 infrared black and white night vision / lattice 4 warm night vision full color [manual switch]. | |
| Infrared Radiation Distance | Within 0-30 meters. | |
| WiFi Module | XM713G. | |
| Antenna Interface | 1 WIFI antenna to support wireless network connection. | |
| Reset Key Interface | Support for one-button reset. | |
| Storage Mode | Cloud storage function, free for 30 days; local Micro SD card (supports 8-128G). | |
| Reliability | Comprehensive lightning protection, in line with national and international standards; 7-24-hour high temperature test at 65 ºC is stable and reliable (including machine test). | |
| Intelligent Analysis | Support PIR human sensor, intelligent double light humanoid recognition alarm. | |

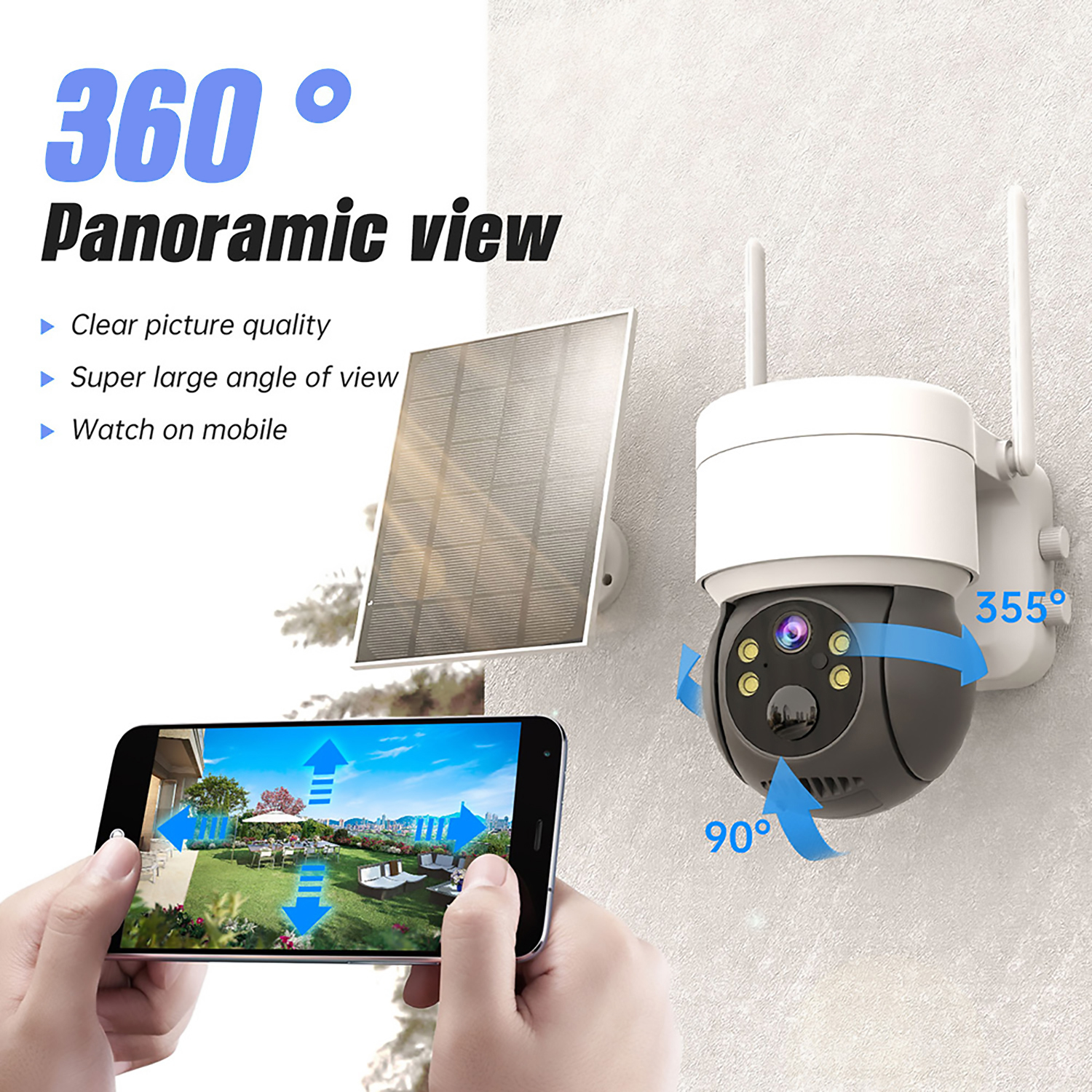

| Monitoring Head | Rotate 320 °left and right, 90 °up and down. | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz. | |
| Client | Computer VMS/ web page web. | |
| ONVIF | Not supported. | |
| Mobile Phone Monitoring | Support for mobile monitoring (iOS,Android). | |
| Power Source | DC5V ±10% / 18650 lithium battery * 3/7500mHA [battery removable]. | |

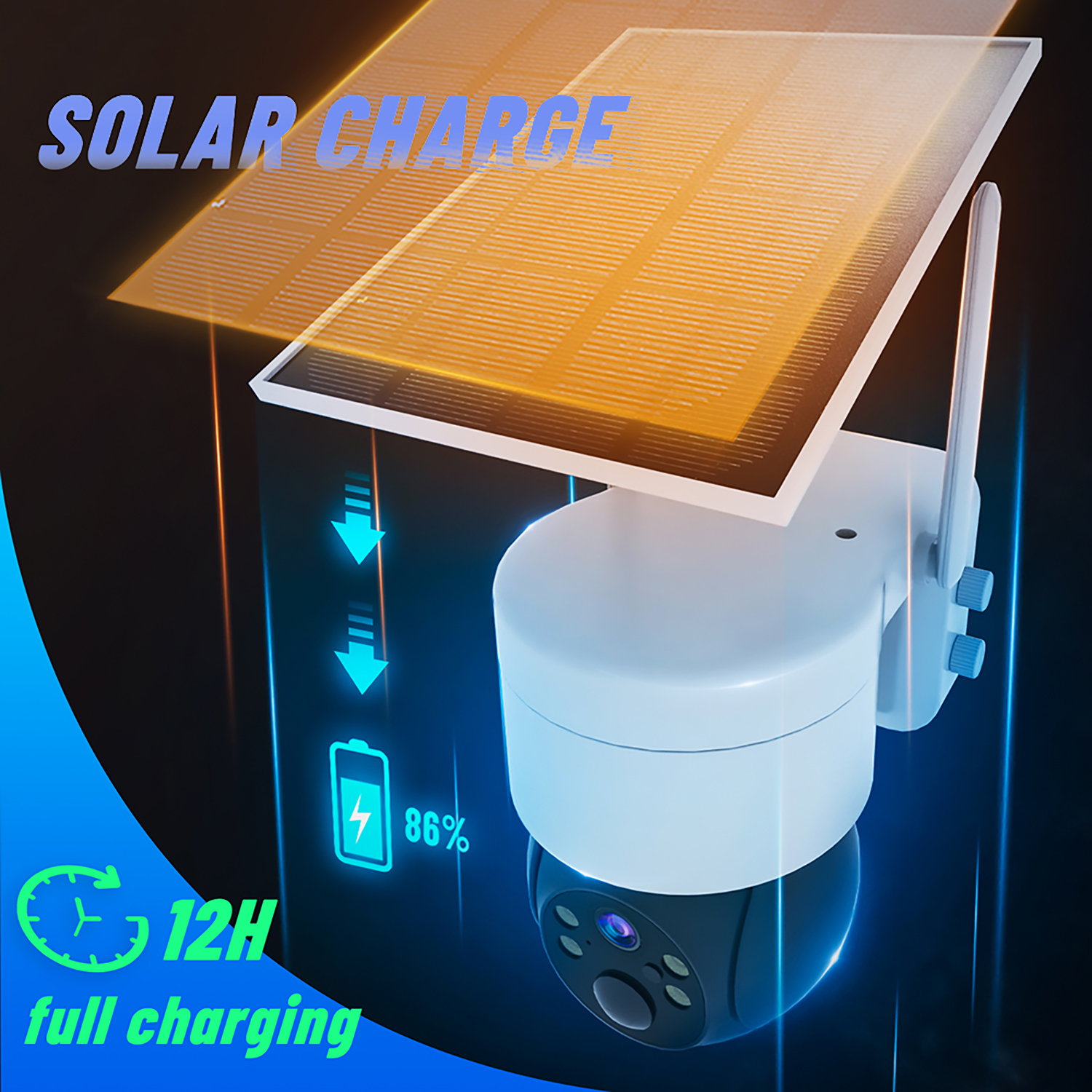

| Charging Mode | External solar panel 5V Type-c interface can be equipped with 3W solar panel. | |
| Power Consumption | Dormant 800uA, voltage 4.2 V, normal preview 200-300mA. | |
| Product Size | 2 inch | |
| Color Box Size | 192*160*122mm | |
| Temperature and Humidity | Minus 20 ºC-60 ºC, humidity less than 90% [no condensation]. | |
| Weight of Accessories | 18650 Universe 1: 0.069kg solar panels: 0.21kg. | |
| Product Weight | Net weight: 0.65kg gross weight [with battery]: 1.03kg (Note: actual product) | |

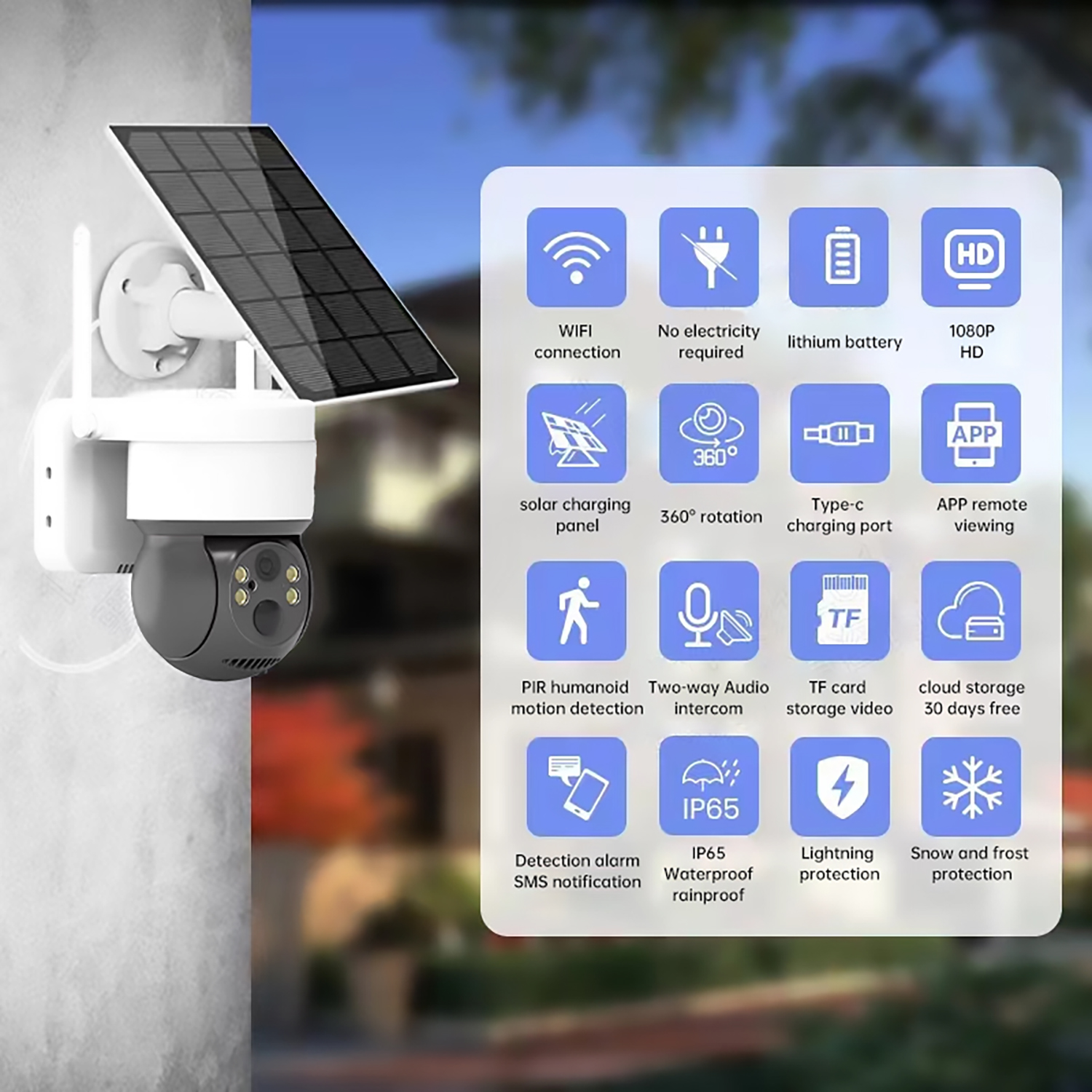

| (1) The resolution is 2.0mp and the image is clear and delicate. (2) PIR somatosensory is supported. (3) 3pcs 18650 lithium batteries can be built into the battery. (4) APP remote Wake up is supported. (5) Support day-to-night conversion. (6) Powered by DC5V, supported by solar power (external solar power panel is required). (7) WIFI network connection is supported. (8) Audio supports 2D/3D noise reduction and digital wide dynamic. (9) Advanced H.265X video compression technology, ultra-low bit rate, high definition picture quality. Lightning protection, in line with the national standard GB/T17626.5, the international standard IEC61000-4-5. (10) Mobile monitoring (iOS,android) is supported. (11) Free support Amazon Alexa | ||
FAQ
Q1: Is your company a trading company or factory? Are you reliable?
A1: We are a factory established in Guangdong, with professional marketing team. We are a comprehensive industry and trade company.
Q2: What's the MOQ?
A2: We have the lowest MOQ in the market. Even 100pc is acceptable. The more you order, the better the price will be. Pls contact us for more details.
Q3: Could you make OEM/ODM order?
A3: Yes. We provide OEM&ODM service for customers. We have strong technical team. Supporting customized logo, packaging box, manual and software language.
Q4: How do you ship the goods?
A4: Normally we ship by DHL, UPS, TNT, FedEx etc.Fast transit time & Low cost is the first priority. We will choose the most suitable shipping way for our customers.For bulk orders, we have long-term cooperation shipping forwarder with competitive price.
Q5: What is the delivery time?
A5: For sample orders, we can ship the goods within 5 days. For bulk orders, we can ship in 10 working days.
Q6: Which payment can be accepted?
A6: T/T,Western Union etc.
Q7: Does the order amount need to be paid in a lump sum?
A7: For bulk orders, 30% deposit and balance before shipment, all by T/T.
Q8: What is the MOQ that can be customized?
A8: Logo can be customized for 10 pcs, and packaging box and manuals in different languages can be customized for 300 pcs.
